Product details

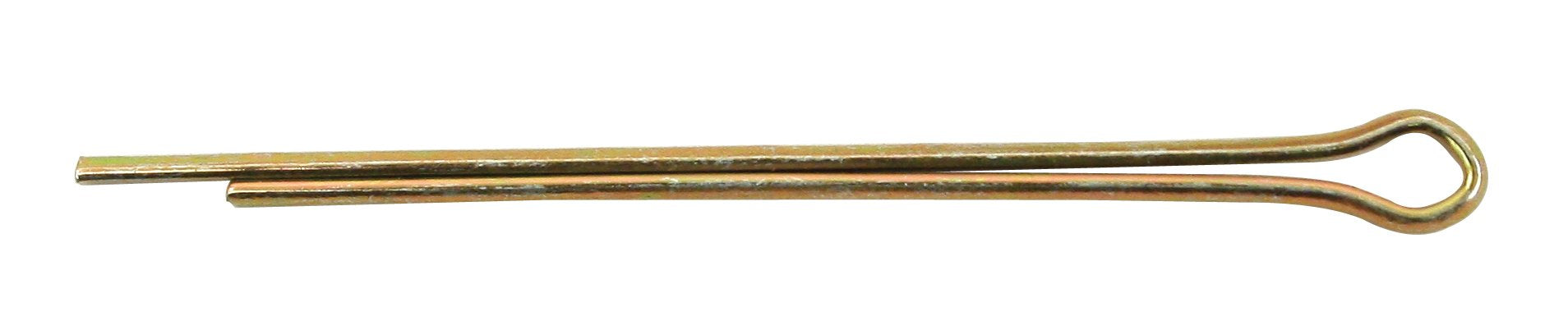

EMPI 98-0118-B is the 5 x 55mm cotter pin that passes through the slotted rear axle nut and the drilled end of the axle on air-cooled Volkswagens, locking the nut so it cannot back off. It replaces VW part number N 012 548 1 and is sold individually. It is the standard pin for the Beetle, Karmann Ghia, Bus, and Type 3 through 1979.
Two rear axle nut sizes share this pin. The 36mm nut (M24 x 1.5, EMPI 16-2421 zinc or 16-2420 chrome) is used on Type 1, Type 3, and Type 2 through 1962. The 46mm nut (M30 x 1.5, EMPI 16-2422 black) is used on Type 2 from 1963 on. Fit a new pin every time an axle nut comes off, since a pin that has been bent and straightened is weakened and can shear.
Technical Details
- Manufacturer: EMPI
- Manufacturer part number: 98-0118-B
- Size: 5 x 55mm
- Replaces: N 012 548 1
- Sold as: Each
Fitment & Compatibility
Fits VW Type 1 1950–1979 (including Super Beetle), Karmann Ghia 1956–1974, Type 2 1950–1979, and Type 3 1964–1973. Porsche owners should compare the old pin before ordering, since EMPI's application covers the VW models only.
Installation & Tuning Notes
Torque the axle nut to the factory figure first. If the slot does not line up with the hole, keep tightening to the next slot and never back the nut off to align it. Push the pin through, then bend one leg over the end of the axle and the other down against the nut so it cannot walk out.
Common Questions
How many do I need?
One per rear axle nut, so two per car.
Does it fit the big 46mm nut on my Bus?
Yes. EMPI applies this pin to the Type 2 through 1979, which covers the later 46mm nut.
