Product details

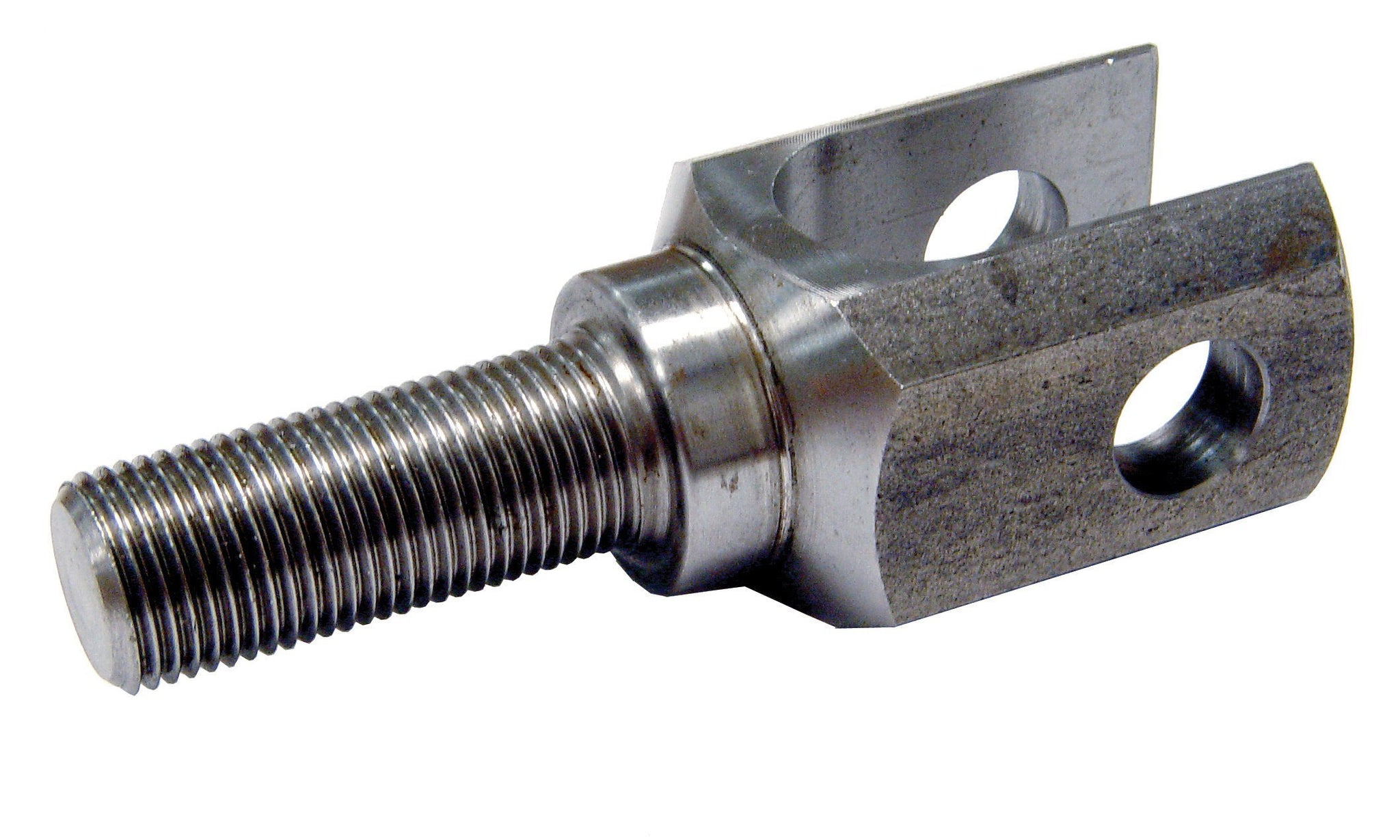

The EMPI 16-2188-0 is a replacement steering clevis with a 5/8-18 right-hand thread for EMPI rack and pinion units 16-2183 and 17-2600, used in off-road and custom steering setups. It threads to the end of the rack and gives a forked end for connecting the steering linkage with a through bolt. The fork has a 1/2 inch bolt hole and a 3/4 inch wide opening. EMPI sells it individually, so replacing both ends of a rack takes two. The matching boot clamp for the same racks is 16-2187-0.
Replace a clevis when the bolt hole has worn oval, the threads are damaged, or the fork shows cracks, since any of those add knock and free play at the wheel. The clevis position also sets the effective length of that side of the steering, so it affects toe. Measure the old clevis position before removal and set the new one to match as a starting point.
Technical Details
- Manufacturer: EMPI
- Manufacturer part number: 16-2188-0
- Type: Rack and pinion clevis
- Thread: 5/8-18, right-hand
- Bolt hole: 1/2 inch
- Fork opening: 3/4 inch wide
- Sold as: Each
Fitment & Compatibility
Made for EMPI racks 16-2183 and 17-2600. EMPI's 14 inch (00-3147-0) and 11 inch (16-2180-0) units use different end parts, so confirm your rack's part number and the thread hand of the clevis you are replacing. Fitting it to a stock VW takes custom work.
Installation & Tuning Notes
Thread the clevis to the measured position, lock it with a jam nut, and use a 1/2 inch through bolt with a self-locking nut. Check toe before driving hard.
Common Questions
Is this sold as a pair?
No. It is sold individually.
What size bolt does it take?
A 1/2 inch through bolt, in a fork with a 3/4 inch wide opening.
