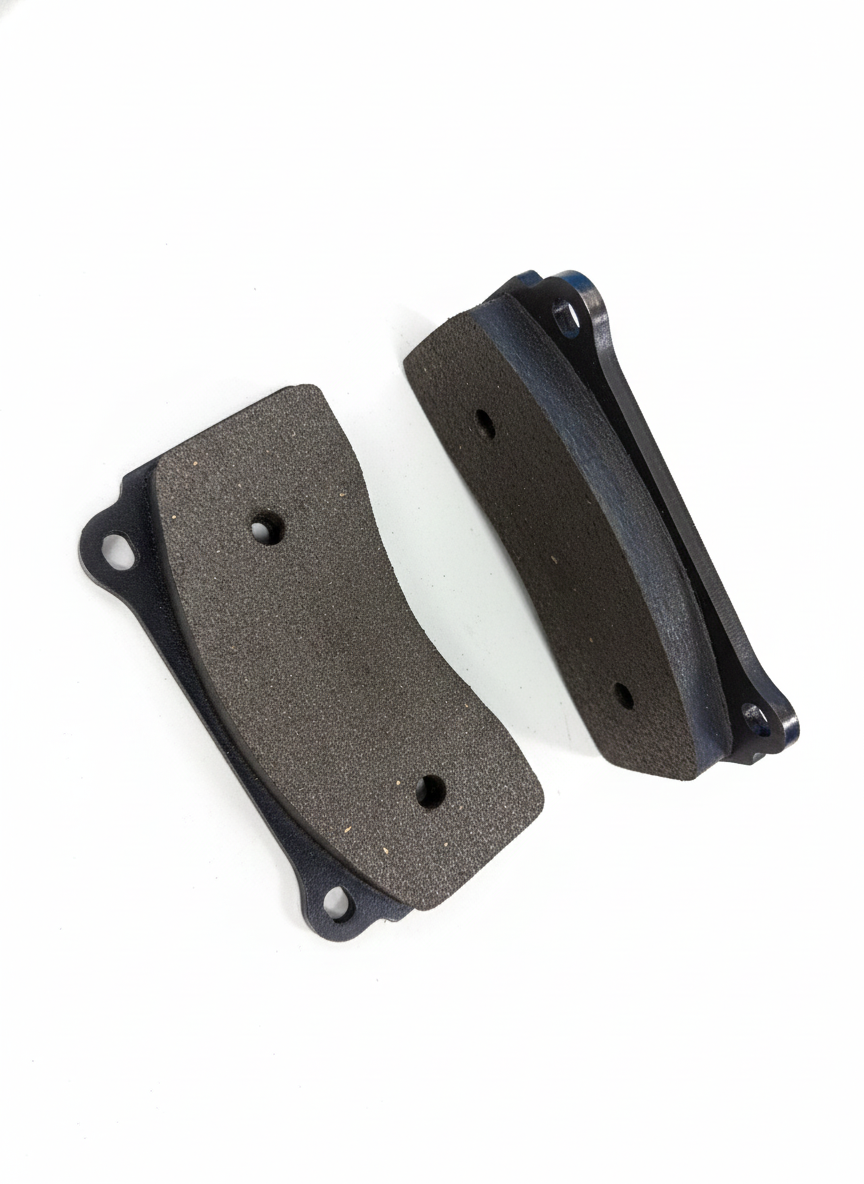

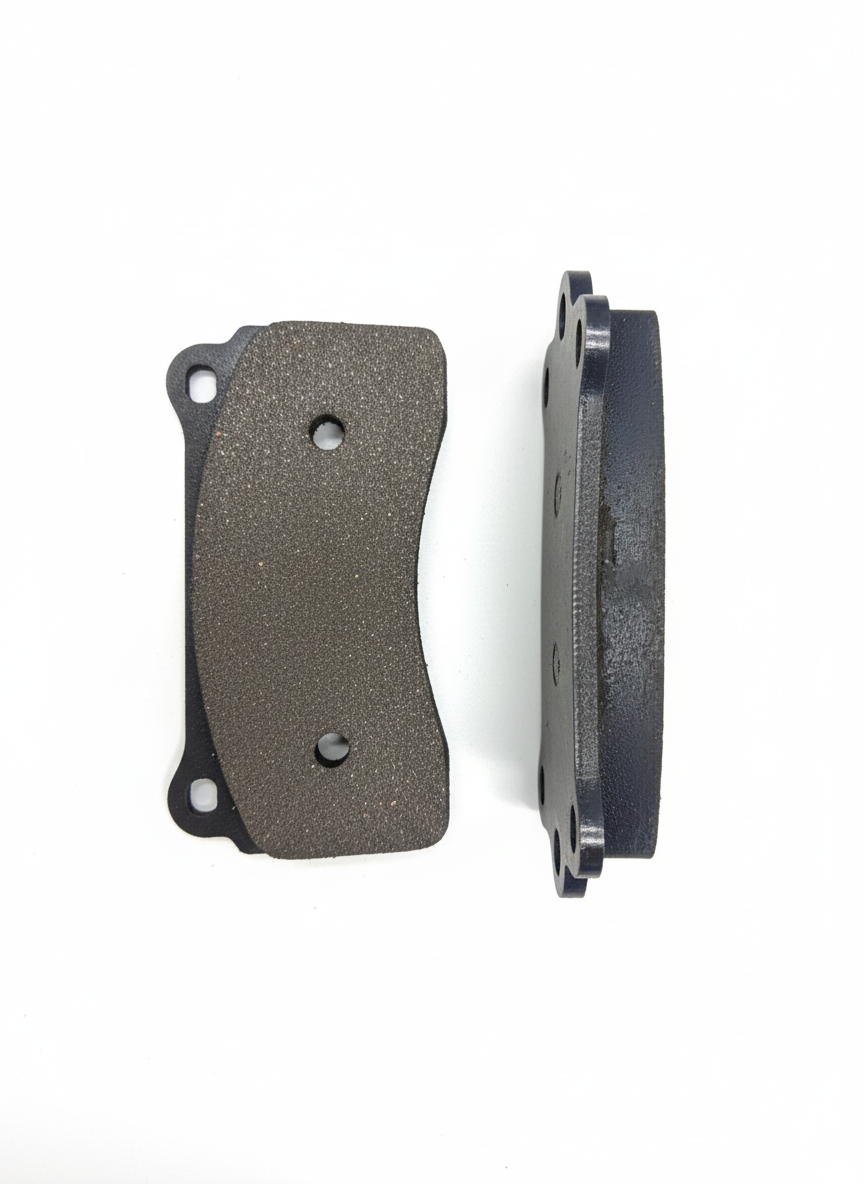

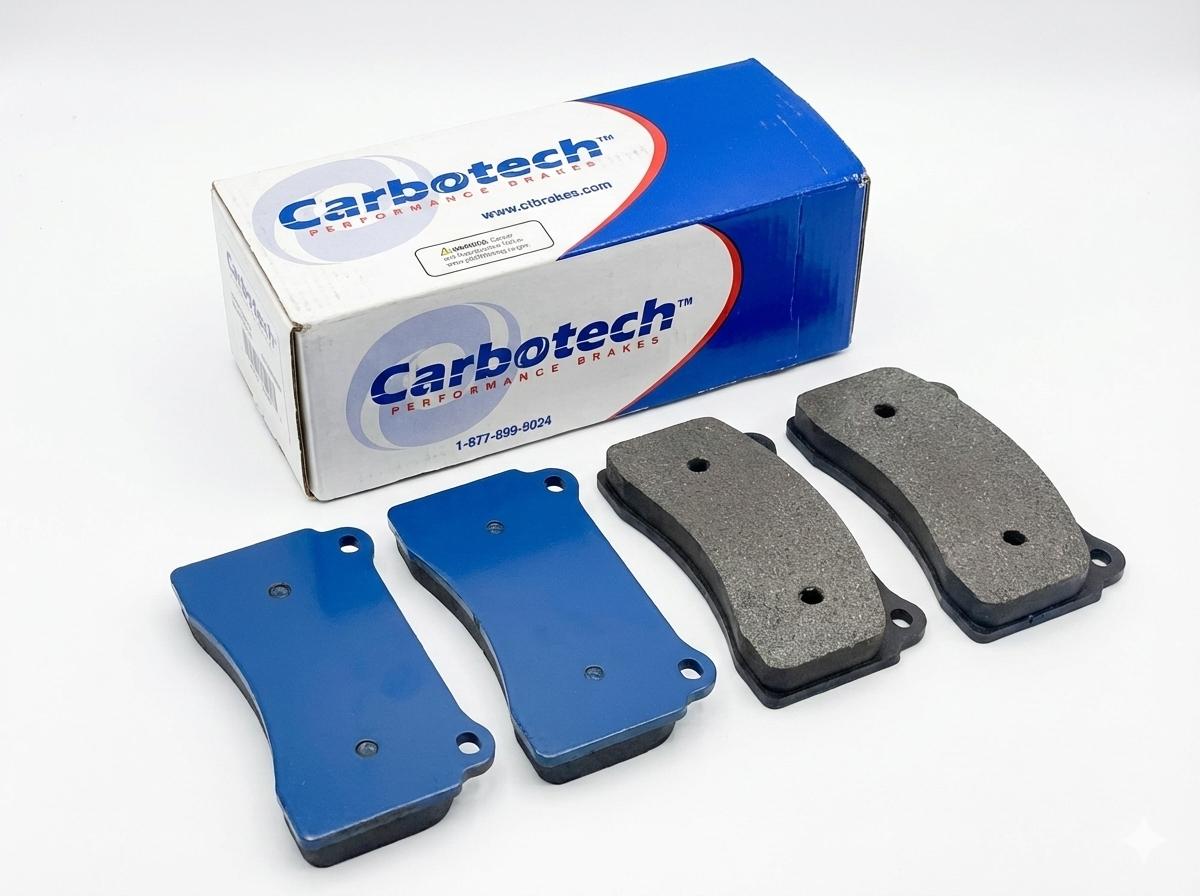

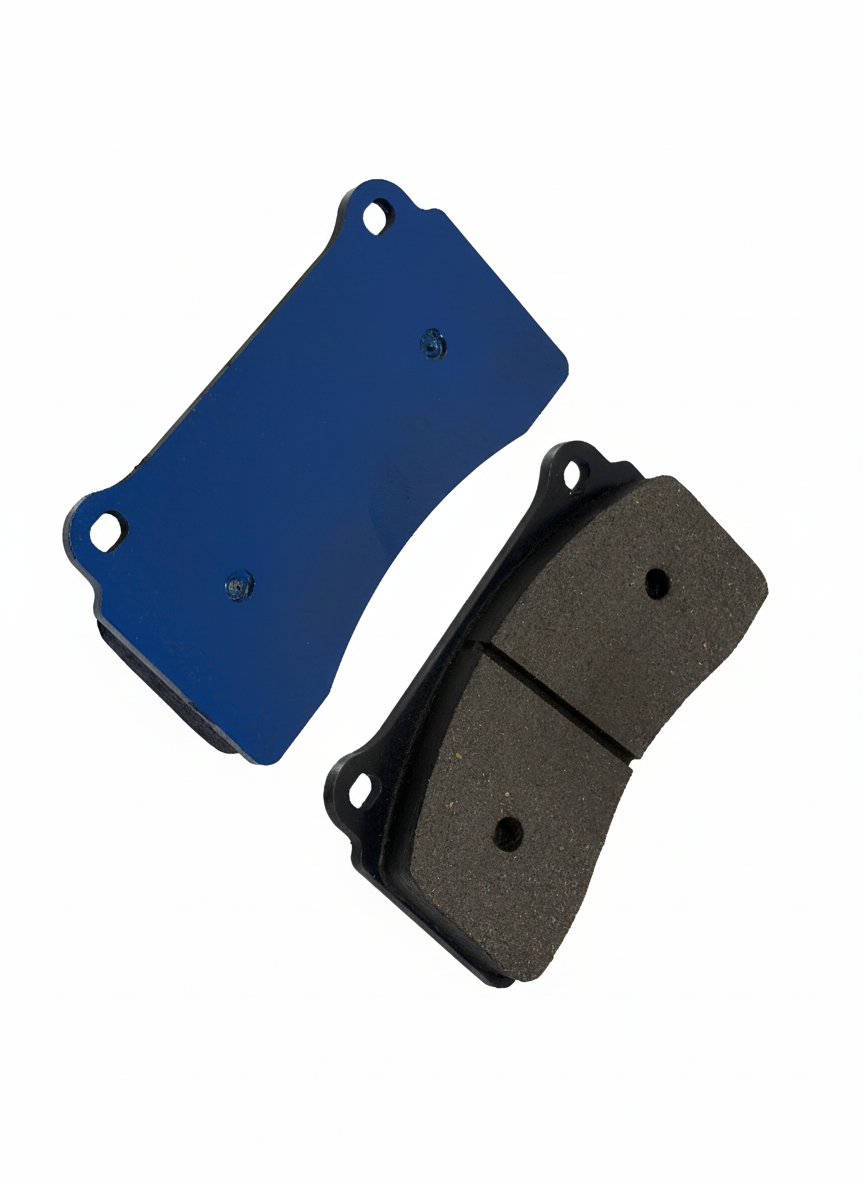

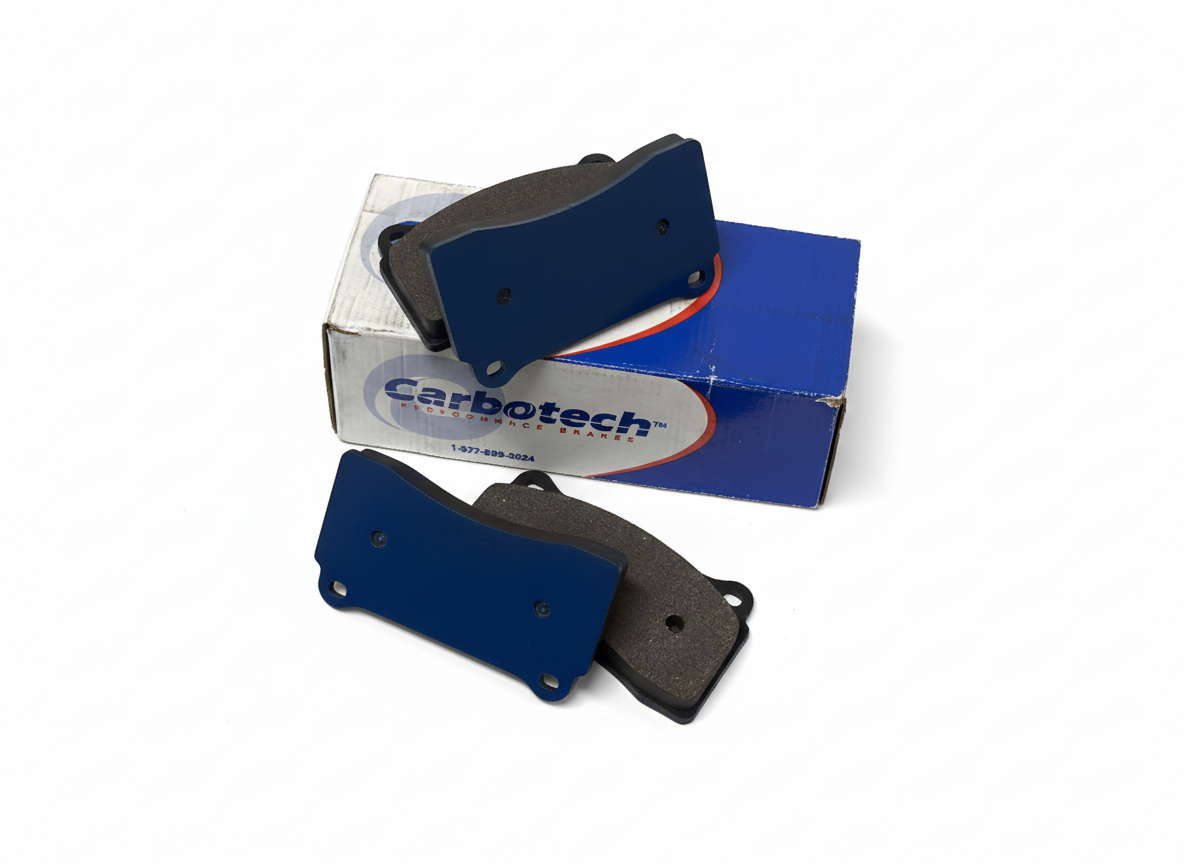

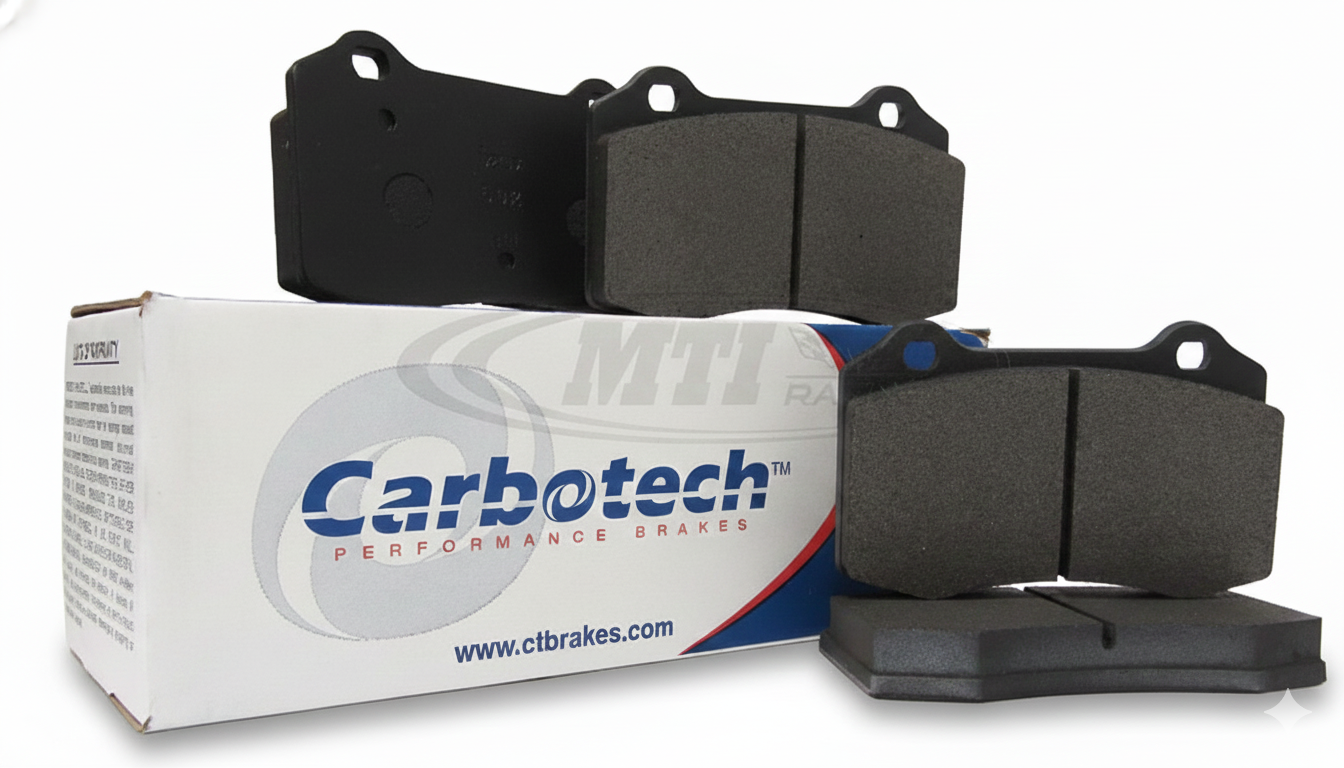

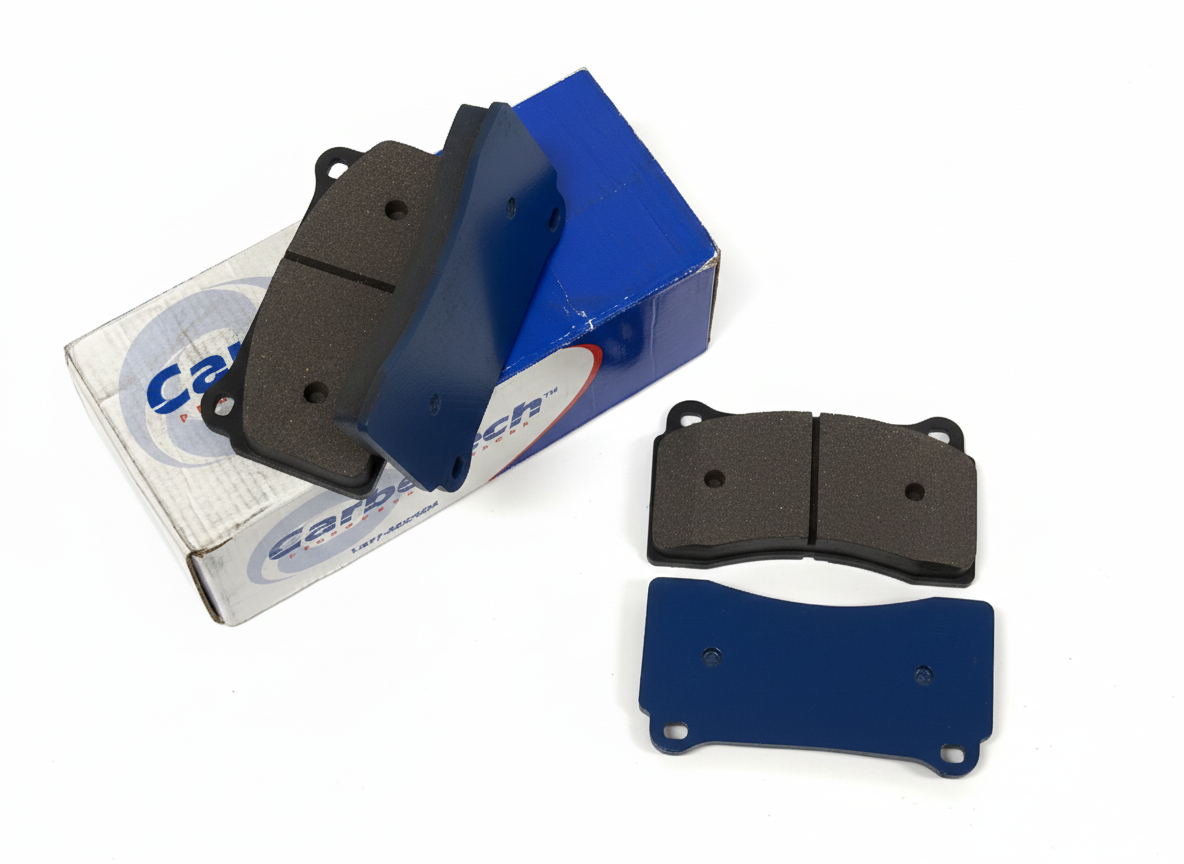

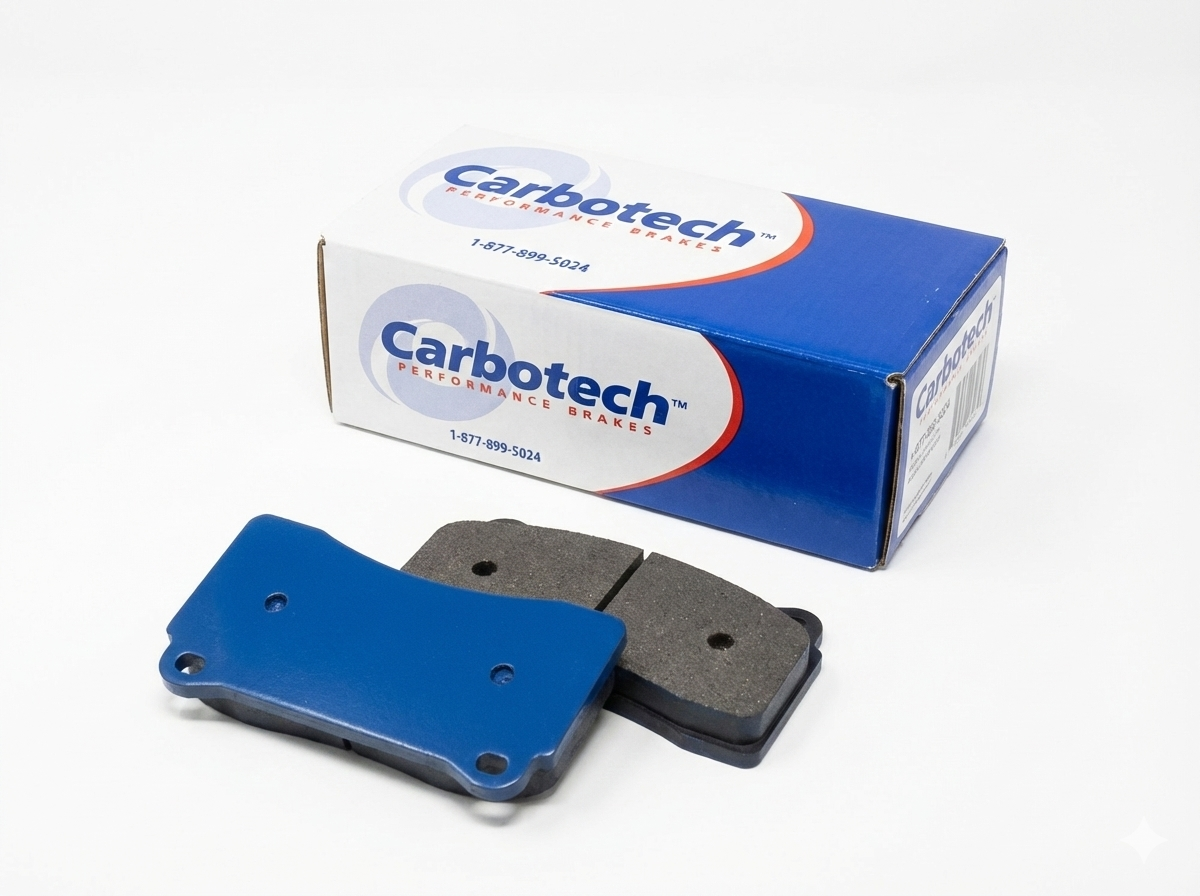

This Carbotech front/rear brake pad set range is for Porsche Cayenne 955, 957, and 958 applications from 2003–2015. The available CT pad shapes depend on model year, wheel size, rotor diameter, trim, and front or rear brake position.
Carbotech brake pads are available in compound choices for street, autocross, and track use, giving Cayenne owners options beyond a single all-purpose pad. Because Cayenne brake packages vary by chassis and trim, the selected pad shape needs to match the exact rotor and caliper setup.
Technical Details
- Manufacturer part number(s): CT1014, CT1130, CT1349, CT1007, CT1452, CT1655, CT1390, CT1350, CT1453, CT978
- Product type: Disc brake pad set
- Position: Front and rear
- Compound options: 1521, AX6, RP2, XP8, XP10, XP12, XP20, XP24
- Compound use: 1521 is the street-focused option; AX6 is aimed at autocross use; XP and RP compounds are intended for track and motorsport applications.
- Application notes: Verify selected position, CT pad shape, brake disc material, rotor size, and submodel before installation.
Fitment & Compatibility
Check the fitment notes to confirm year, Cayenne chassis, trim, wheel size, rotor diameter, front or rear placement, CT pad shape, and compound before ordering.
- CT1014: 2003-2007 - Cayenne 18" Wheels/350mm Discs; 2008 - Cayenne 350mm; 2008-2010 - Cayenne 350mm Front Disc
- CT1130: 2003-2007 - Cayenne 19" Wheels/380mm Discs
- CT1349: 2008 - Cayenne 368mm Front Disc; 2009-2010 - Cayenne 410mm Ceramic Discs; 2011-2014 - Cayenne Front w/Ceramic Discs; 2011-2014 - Cayenne S & Turbo - 360mm & 390mm Iron Discs
- CT1007: 2003-2007 - Cayenne 17" Wheels/330mm Discs; 2008-2010 - Cayenne 330mm Front Disc
- CT1452: 2011-2014 - Cayenne Base w/350mm Front Iron Discs
- CT1655: 2013-2015 - Cayenne Diesel - Rear Only
- CT1390: 2009-2014 - Cayenne Rear w/Ceramic Discs
- CT1350: 2008 - Cayenne 368mm Front Disc; 2008 - Cayenne Rear - w/368mm Front Discs
- CT1453: 2011-2014 - Cayenne Rear - All Models w/Iron Discs
- CT978: 2003-2007 - Cayenne Rear-ALL Models; 2008 - Cayenne 350mm; 2008 - Cayenne and 380mm Front Discs; 2008 - Cayenne Rear w/330mm; 2009-2010 - Cayenne Rear - All Models w/Iron Discs
If you need help confirming the correct Carbotech pad shape for a Cayenne brake package, send us your VIN and brake setup details. PMB Performance has over 20 years of experience working with Porsche brake parts, fitment details, and application-specific brake service.
