EMPI race-prep 934 inner CV race with large 33-spline center

EMPI Race-Prep 934 Inner CV Race, Large 33-Spline

SKU: 16-2627-0

$42.39 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

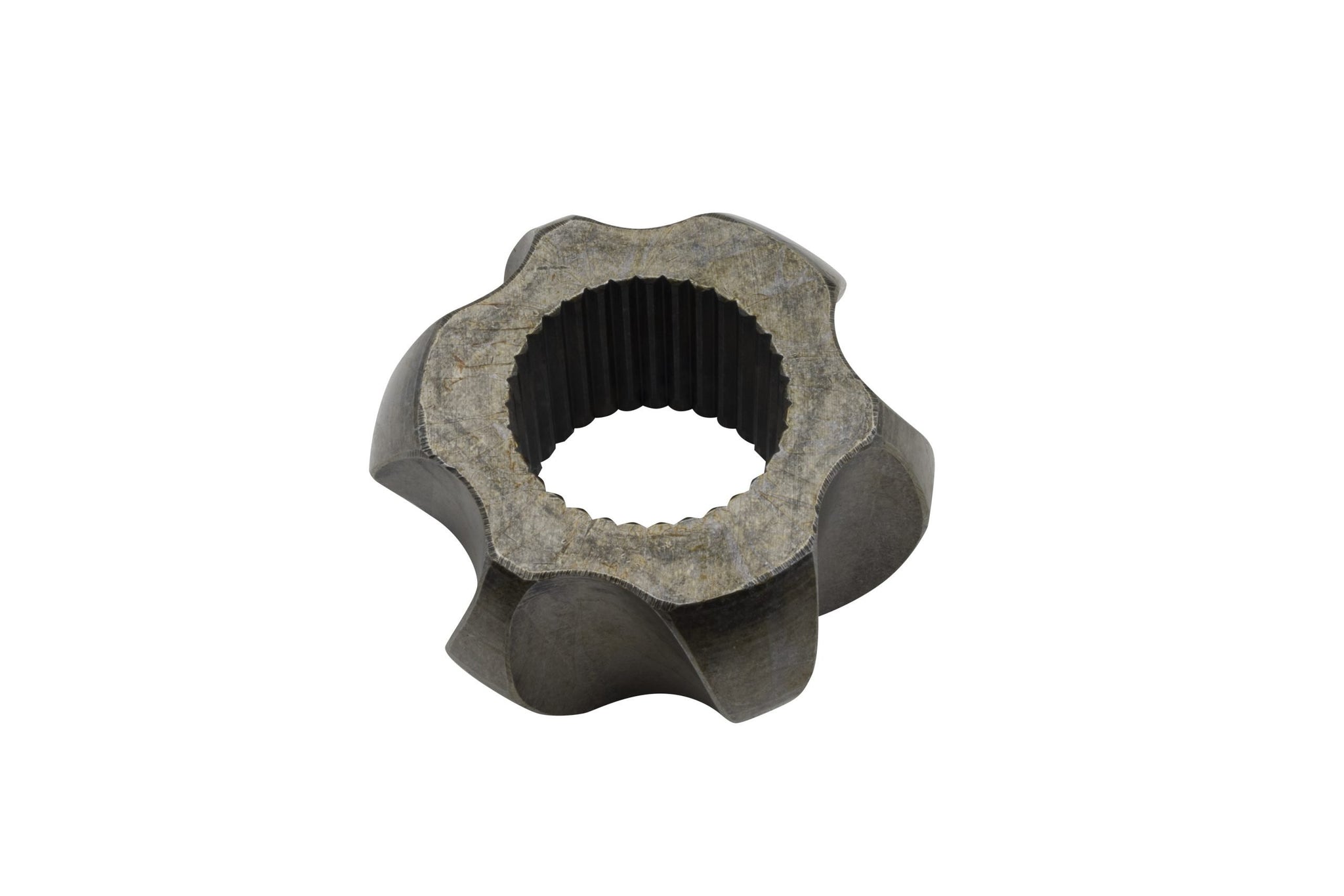

This race replaces the inner component of EMPI's off-road 934 CV joint. The 128mm assembly uses a large 33-spline center and 1-inch balls. It is a race-prepped joint, so the internal parts need to be chosen together for the assembly.

Technical Details

  • EMPI reference: 16-2627-0
  • Component: Inner CV race
  • Parent joint: 98-5098-B, race-prep 934
  • Joint outside diameter: 128mm
  • Splines: Large 33-spline
  • Ball diameter: 1 inch
  • Quantity: Each

Fitment & Compatibility

Match the axle spline profile and exact 934 joint reference before rebuilding. Inspect the cage, balls and outer body for wear or damage and confirm they suit this race. Spline count alone does not make it interchangeable with smaller Type 2 CV components.
