Product details

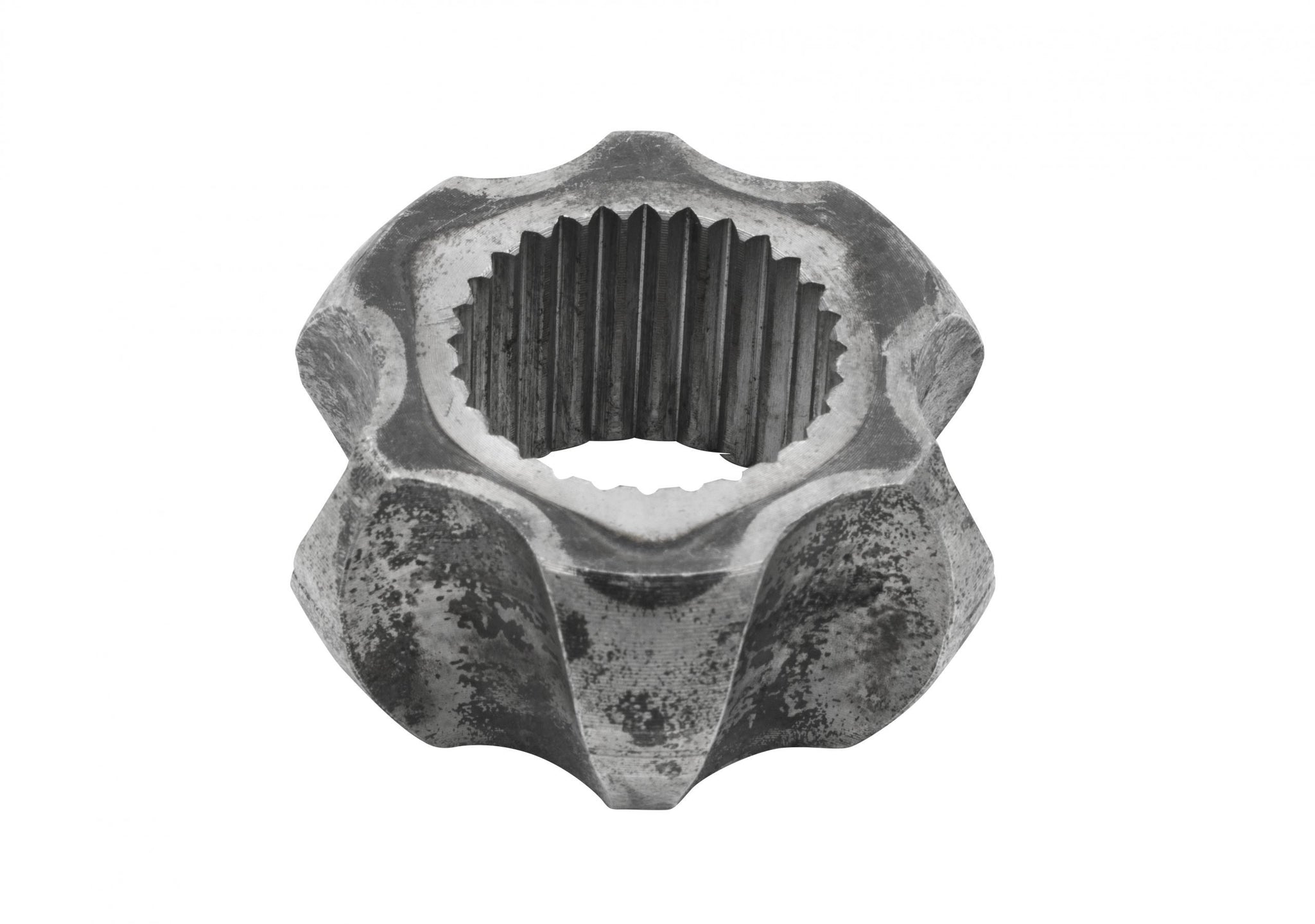

This inner race replaces the center component in EMPI's lightened, race-prepped 930 CV joint. The 28-spline race works with the balls and cage inside that 108mm joint. It is the race alone, so it will not be confused with a cage or a complete CV assembly.
Technical Details
- Part number: 16-2635-0
- Component: Inner CV race
- Joint family: EMPI lightened race-prep 930
- Replacement application: 98-5094-B
- Inner splines: 28
- Joint ball size: .875 inch
- Quantity: Each
Fitment & Compatibility
Match the exact EMPI joint reference and its balls and cage before assembly. Inspect all bearing tracks and joint components rather than replacing one visibly damaged piece in an otherwise worn joint. Confirm correct orientation, lubrication and free articulation during rebuilding.
