Product details

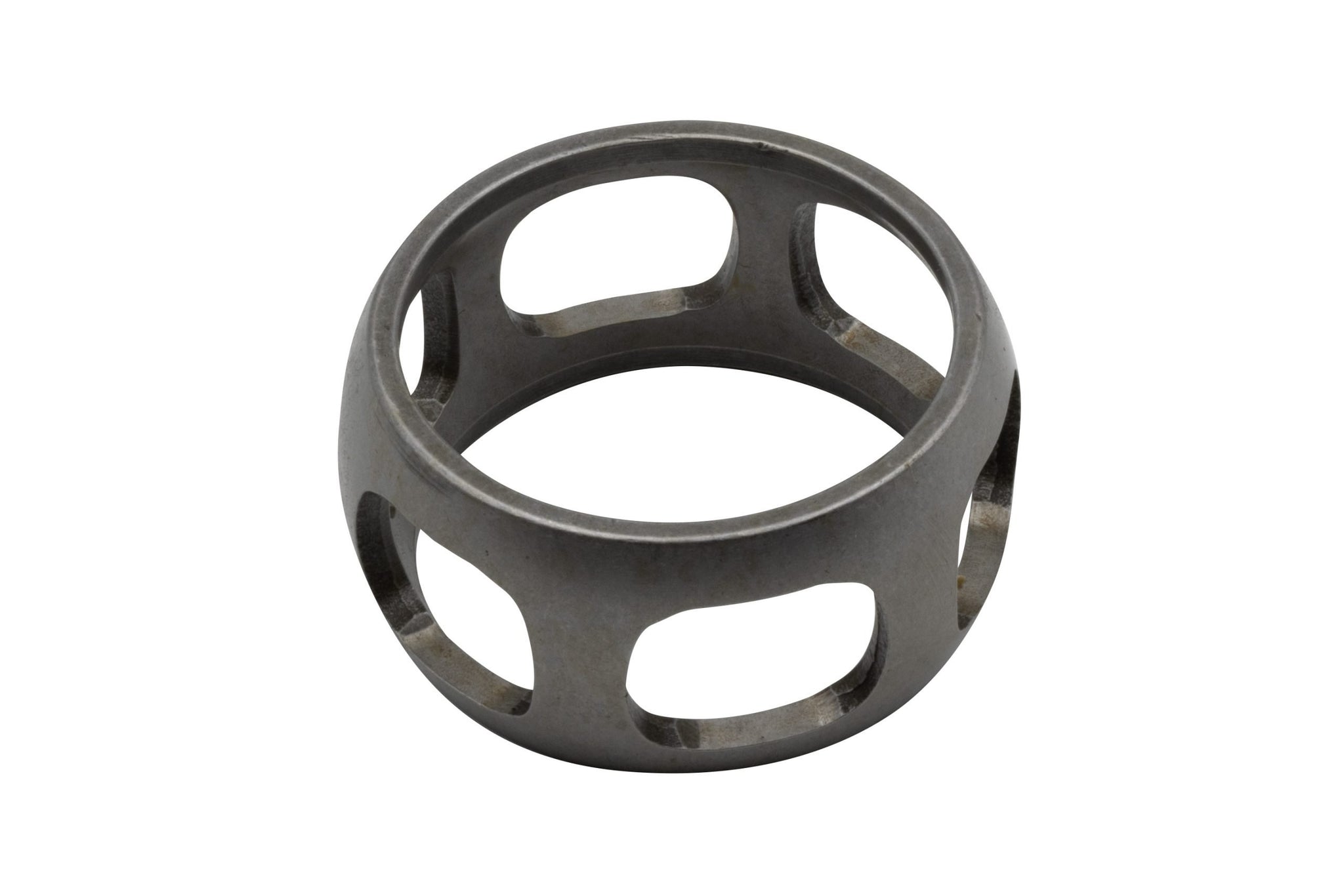

This cage locates the balls inside EMPI's 87-9917 Type 2 and Vanagon CV joint. It is a service component for the stock-style 100mm assembly. The cage is supplied on its own, and the inner race, balls and outer joint are inspected and kept or replaced separately as needed.
Technical Details
- EMPI reference: 16-2631-0
- Part: CV ball cage only
- Parent joint reference: 87-9917
- Joint family: Stock-style Type 2/Vanagon, 100mm
- Ball size of parent joint: .750 inch
- Sold: Each
Fitment & Compatibility
Confirm the joint is the EMPI 87-9917 before ordering. EMPI's off-road Type 2 joint uses a separate replacement cage. Check ball retention and free movement after rebuilding, and do not reuse damaged or pitted bearing-track components.
