BRAID Center Lock Adapter
Track, Autocross, Tarmac Rally & Street [split]
The kit is sold per corner and includes one center nut. Please note, this is only available for BRAID center lock wheels. For other applications, please contact us for compatibility inquiries.

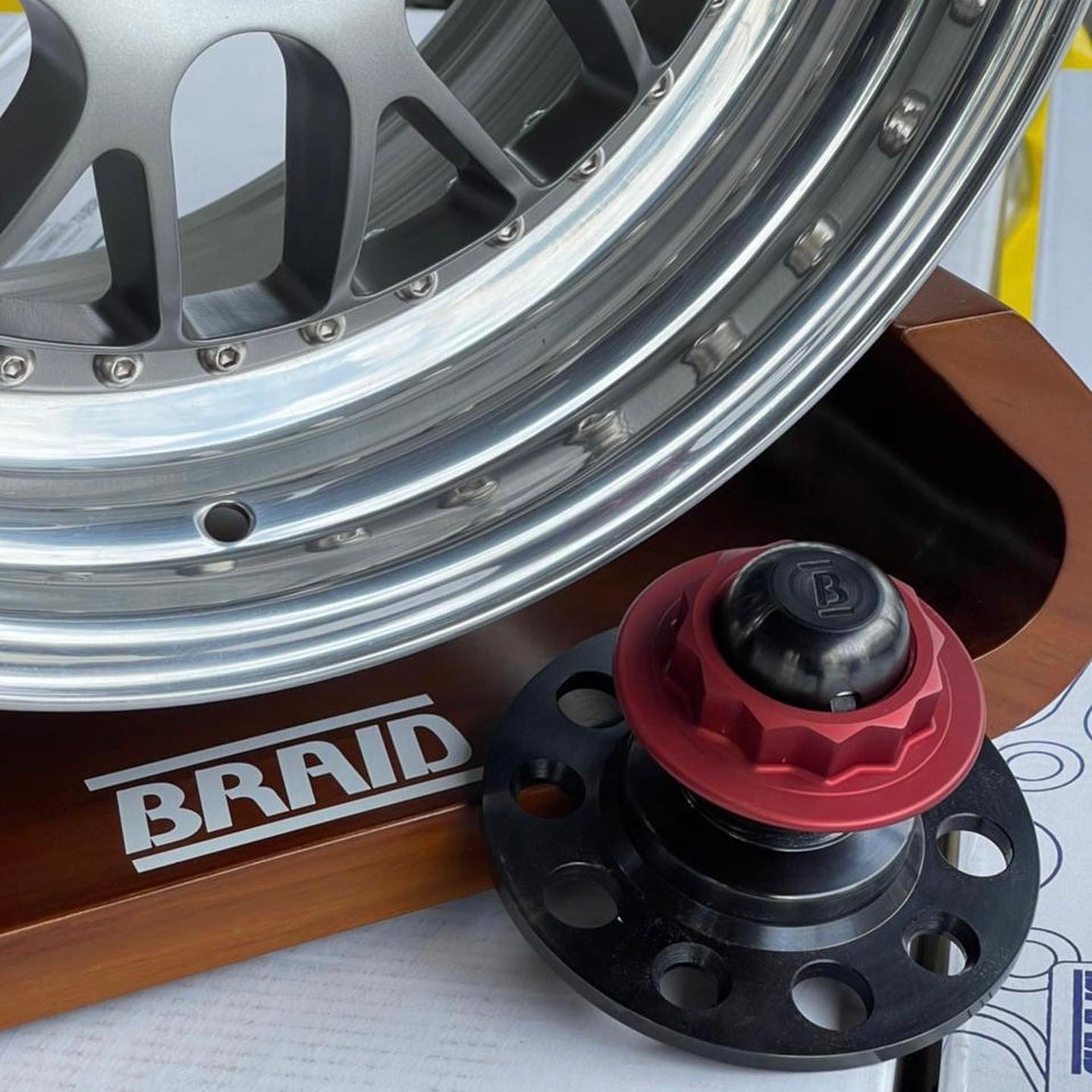

Convert your standard hubs to center-lock or mononut hubs with our race-quality center lock adapters. Custom-built to your specifications, each adapter bolts onto your hubs with integrated drive pins that precisely fit into the drive pin holes of our center-lock wheels, ensuring a secure and reliable connection.

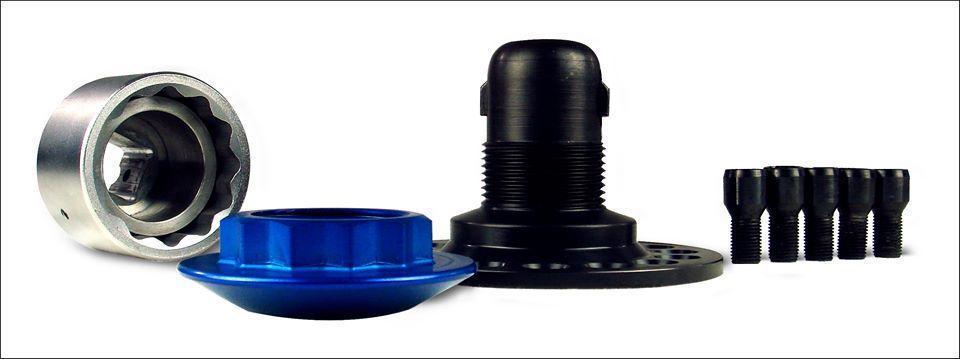

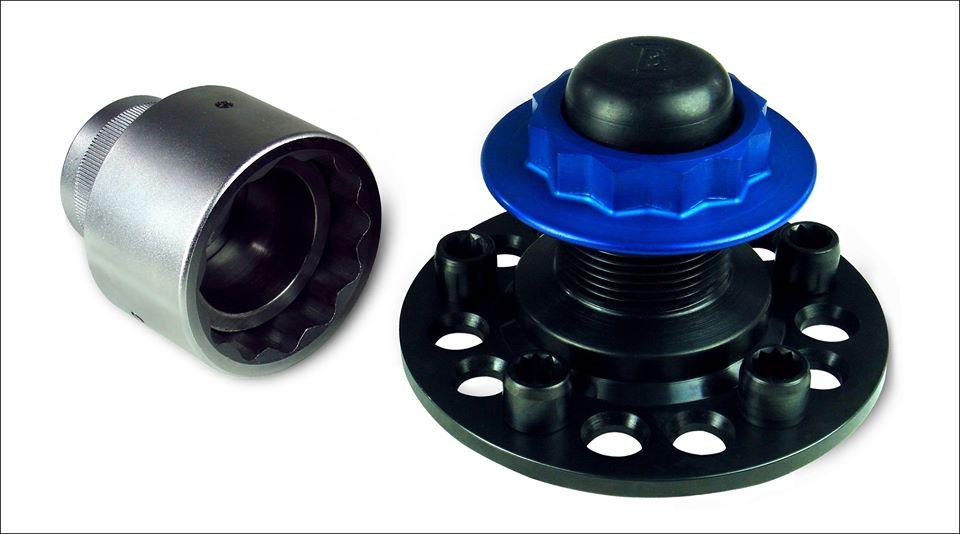

The Hub Adapter and Drive Pins are machined from high-grade steel for strength, while the Center Nut is crafted from aerospace-grade aluminum and finished with hard anodization for ultimate durability. We’ve also updated the safety clips with an innovative Automatic Retaining System (ARS), which snaps into the top crown of the nut to prevent loosening, ensuring your wheels stay secure under any condition.

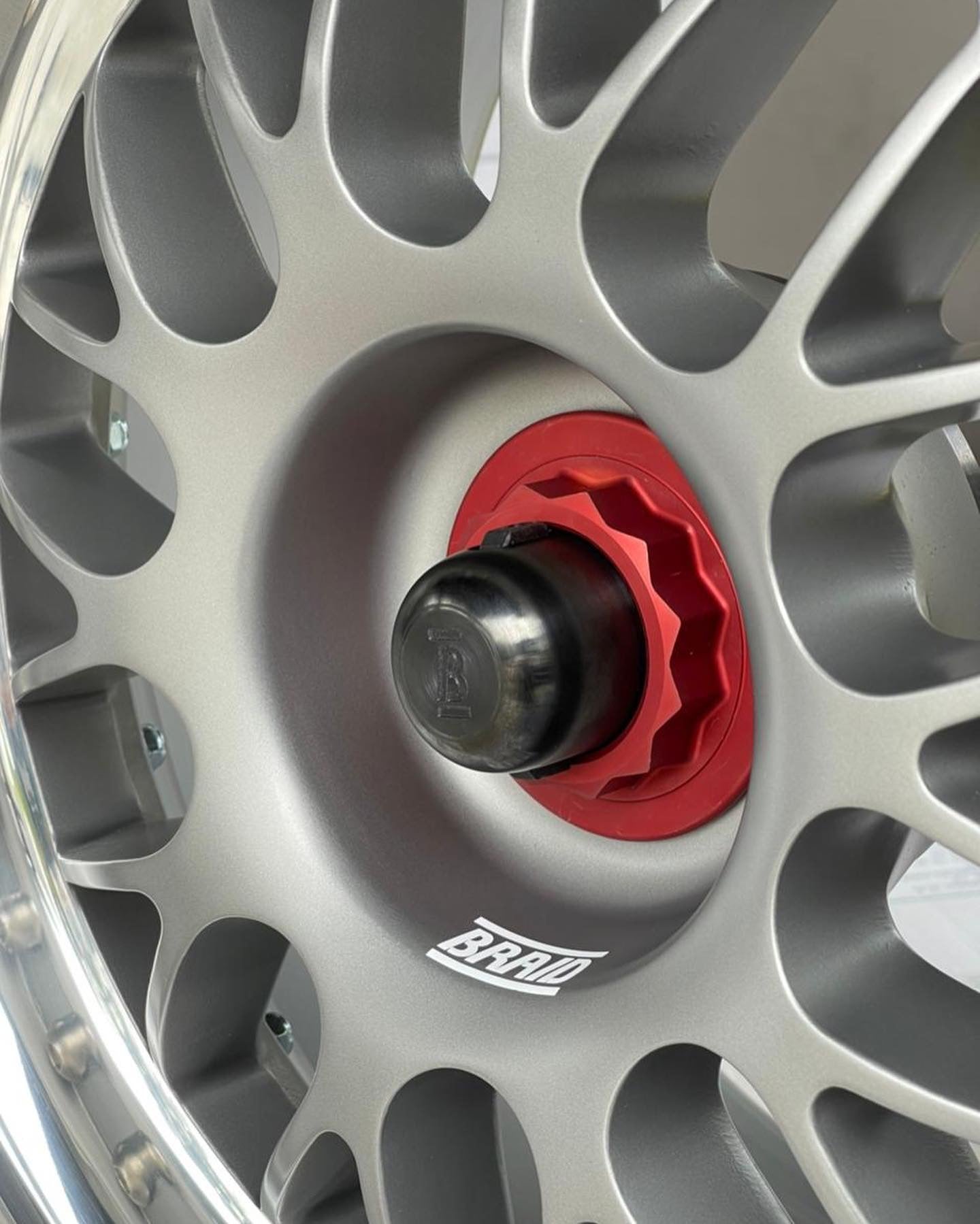

The installation process is straightforward: after mounting the Mononut Adapter onto the hub over the rotor hat and tightening it using the included bolts or nuts (which also function as drive pins), the wheel is fitted and secured with the center nut using the supplied wrench. Required torque is 500N.m (370 lb.ft).
Benefits and features:
- Faster wheel locking compared to previous adapters
- Easier installation process
- Auto-centering for precise wheel placement
- Thin plate design starting at just 5mm
- Adaptable to nearly any vehicle
- Compact design with only 94mm of protrusion (varies with wheel specs)
- 50% lighter than previous models, weighing just 1.2kg (2.64lbs) per adapter
