Product details

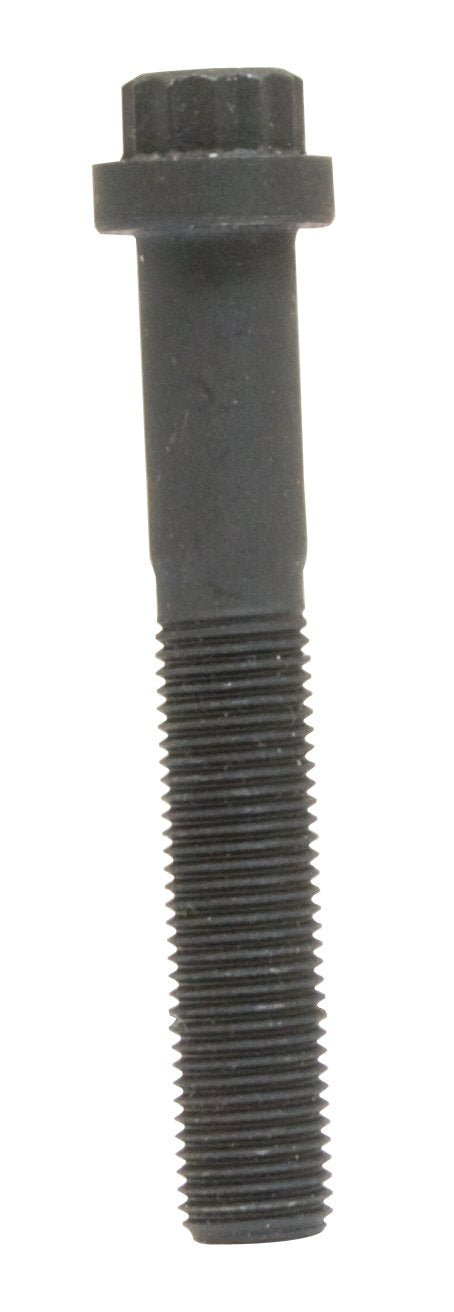

The EMPI 16-2415-0 is a set of six hardened 3/8"-24 x 2-5/16 inch 12-point CV bolts made for 930 CV joints fitted with EMPI's 86-9312 billet boot retainer and CV flange. That retainer captures a 930 CV boot between an aluminum inner flange and a billet outer ring, with no clamps or zip ties, and EMPI notes it calls for longer bolts than standard. These are the ones sized for it. EMPI describes its CV bolts as hardened, aircraft-quality hardware, and this one carries an external 12-point head. One set of six does one 930 CV joint.
Length is the spec to check. EMPI's standard 930 CV bolt is 16-2413, a 3/8"-24 x 2-1/4 inch 12-point bolt, and that is the one to use on joints without the billet retainer. EMPI also sells separate billet grease flanges for 930 joints (86-9316, for 10mm or 3/8" bolts), so confirm which flange is on the joint before ordering bolts. A car with four 930 joints using the billet retainer needs four sets.
Technical Details
- Manufacturer: EMPI
- Manufacturer part number: 16-2415-0
- Thread: 3/8"-24
- Length: 2-5/16"
- Head: 12-point, external
- Grade: Hardened, aircraft quality
- For use with: EMPI 86-9312 billet boot retainer and CV flange
- Sold as: Set of 6
Fitment & Compatibility
Fits 930-style CV joints equipped with the EMPI 86-9312 billet boot retainer and CV flange. EMPI lists these bolts for custom applications, so confirm the flange and joint on your car rather than going by vehicle model.
Common Questions
How many bolts are in the set?
Six, enough for one 930 CV joint.
What is the difference from the 2-1/4 inch bolt?
The 2-5/16 inch bolt is the longer one EMPI specifies for the 86-9312 retainer. Use the 2-1/4 inch 16-2413 bolt on joints without it.
