Product details

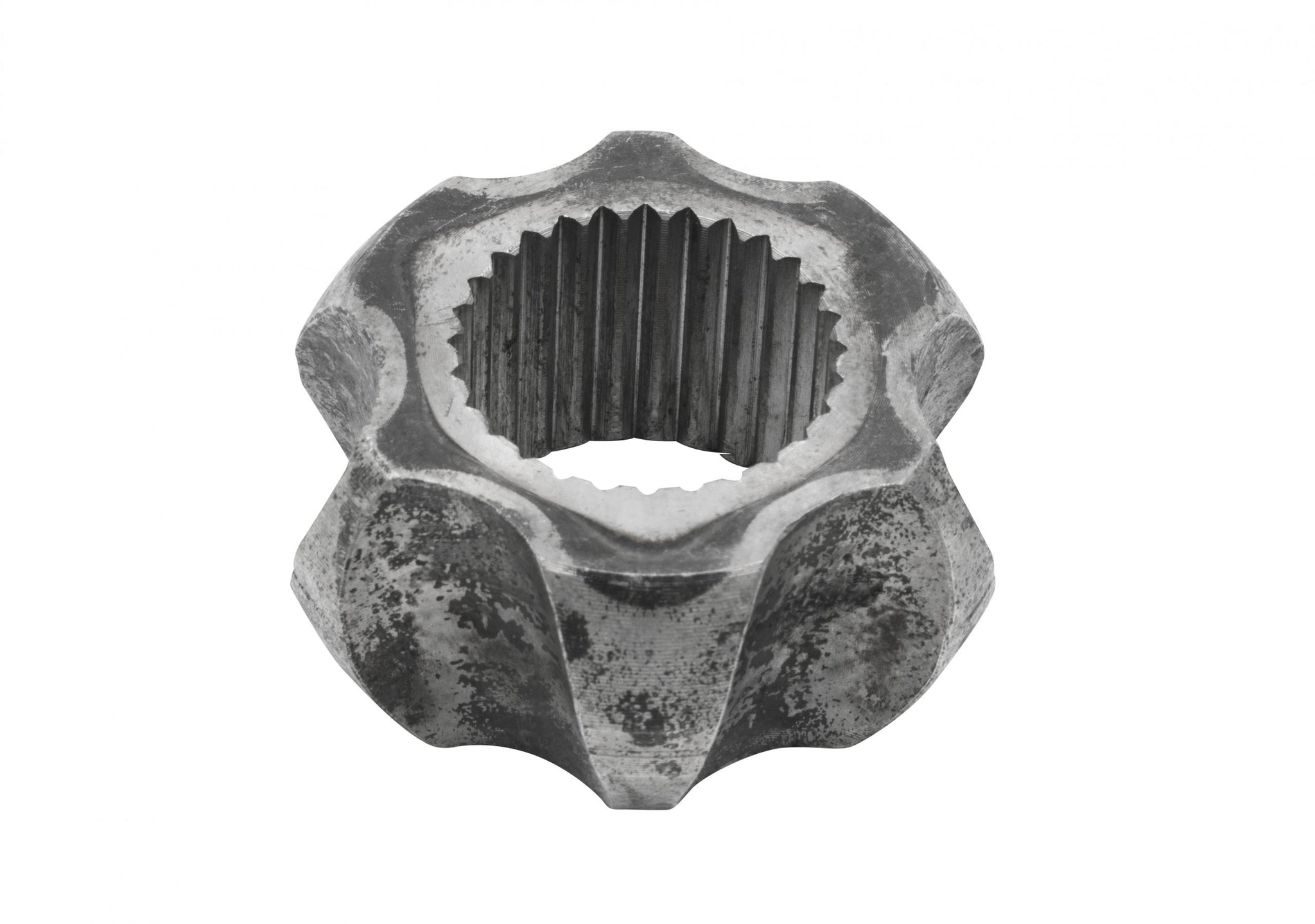

This replacement inner race serves the race-prepped 930 joint with EMPI's solid outer body. The 108mm off-road assembly uses a 28-spline center and .875-inch balls. This race-prepped joint differs from the standard 930 joint and from the lightened version, which has its own reference.
Technical Details
- Part number: 16-2629-0
- Component: Inner CV race
- Replacement for: EMPI 87-9470-B
- Parent joint: Solid-body off-road 930, 108mm
- Center splines: 28
- Ball size: .875 inch
- Quantity: Each
Fitment & Compatibility
Match the exact parent joint, race preparation and cage and ball combination before assembly. Check full suspension travel against joint articulation; an internal race does not change the axle's available travel by itself. Inspect the outer tracks and cage during service.
