Product details

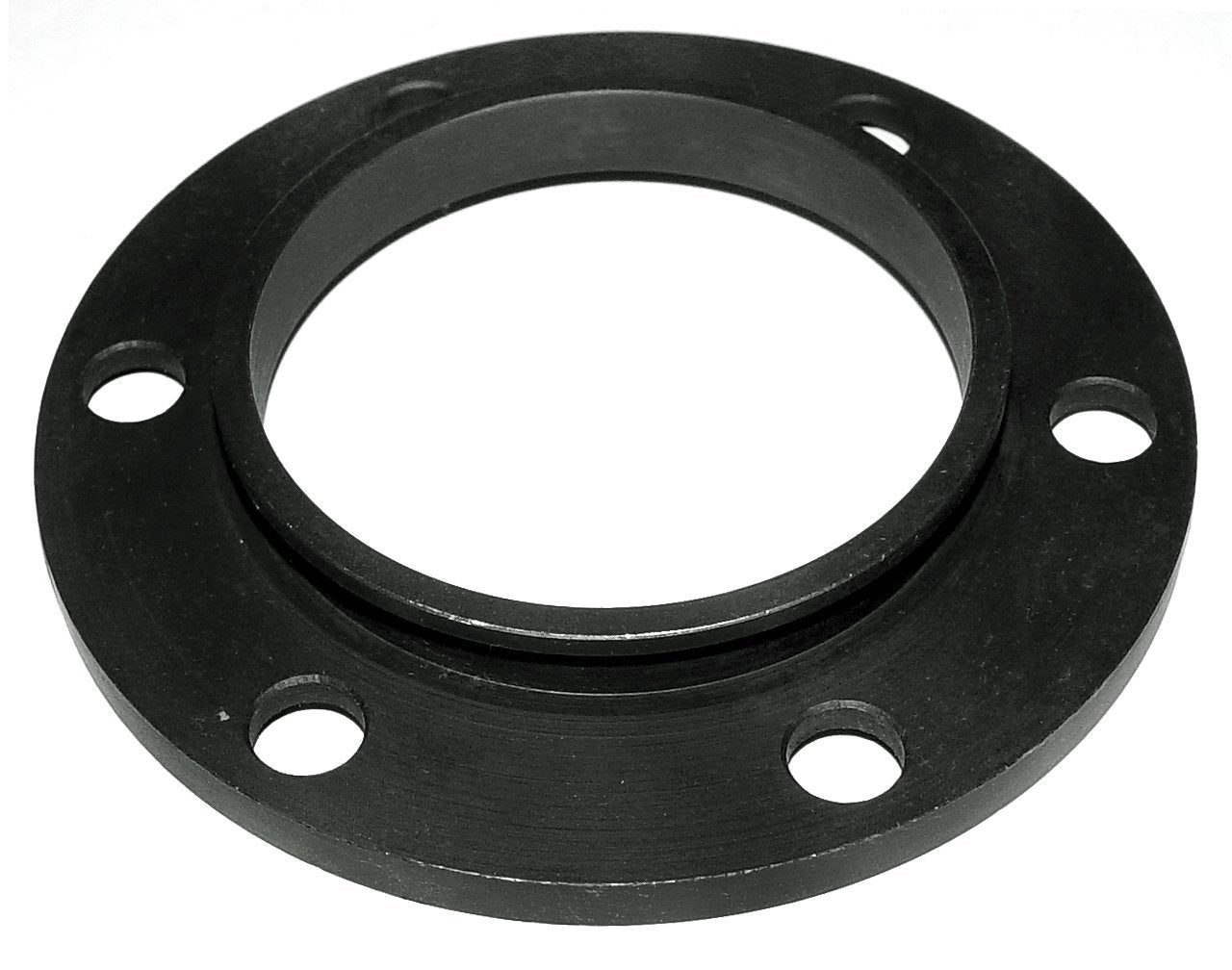

The EMPI 86-9302-0 is the bulk 930 C.V. boot flange from EMPI's 86-9300-D off-road boot kit, the bolt-on flange that holds an off-road boot to a 108mm Porsche 930 type C.V. joint. EMPI specifies its 16-2415 bolts with this flange, and those bolts are not included. The 16-2415 set is six 3/8-24 x 2 5/16 inch hardened bolts with 12-point external heads. The flange is also the one EMPI packs in its 87-9469-K Porsche 930 C.V. joint kit, along with the 86-9301 boot.
Several EMPI boots mount on this flange. The 86-9301 is the matching 930 boot, and the 86-9320 off-road 930 boot is specified for either this flange or the 86-9312 billet flange. EMPI also says its 86-9304 Type 2 off-road boot and its 86-9322 934 inner boot can be used with it. If you prefer to skip tie wraps at the boot, the 86-9312 billet aluminum boot retainer and flange set captures the boot between two rings.
Technical Details
- Manufacturer: EMPI
- Manufacturer part number: 86-9302-0
- Application: 930 type C.V. joint, 108mm
- Kit it comes from: 86-9300-D
- Bolt holes: .394 in
- Bolts used: EMPI 16-2415, 3/8-24 x 2 5/16 in, set of 6 (not included)
- Sold as: Bulk, each
Fitment & Compatibility
For 108mm 930 type C.V. joints, including EMPI 87-9469-B, the off-road 87-9470-B, and the lightened 98-5094-B. It does not fit stock 90mm Type 1 or 100mm Type 2 joints.
Common Questions
Does it come with bolts?
No. EMPI calls for its 16-2415 bolts, which are ordered on their own.
Can I put a Type 2 boot on it?
Yes. EMPI states its 86-9304 Type 2 off-road boot will also fit this flange.
PMB Performance can help you sort out 930 joint, flange, and boot combinations for a long-travel build.
