Product details

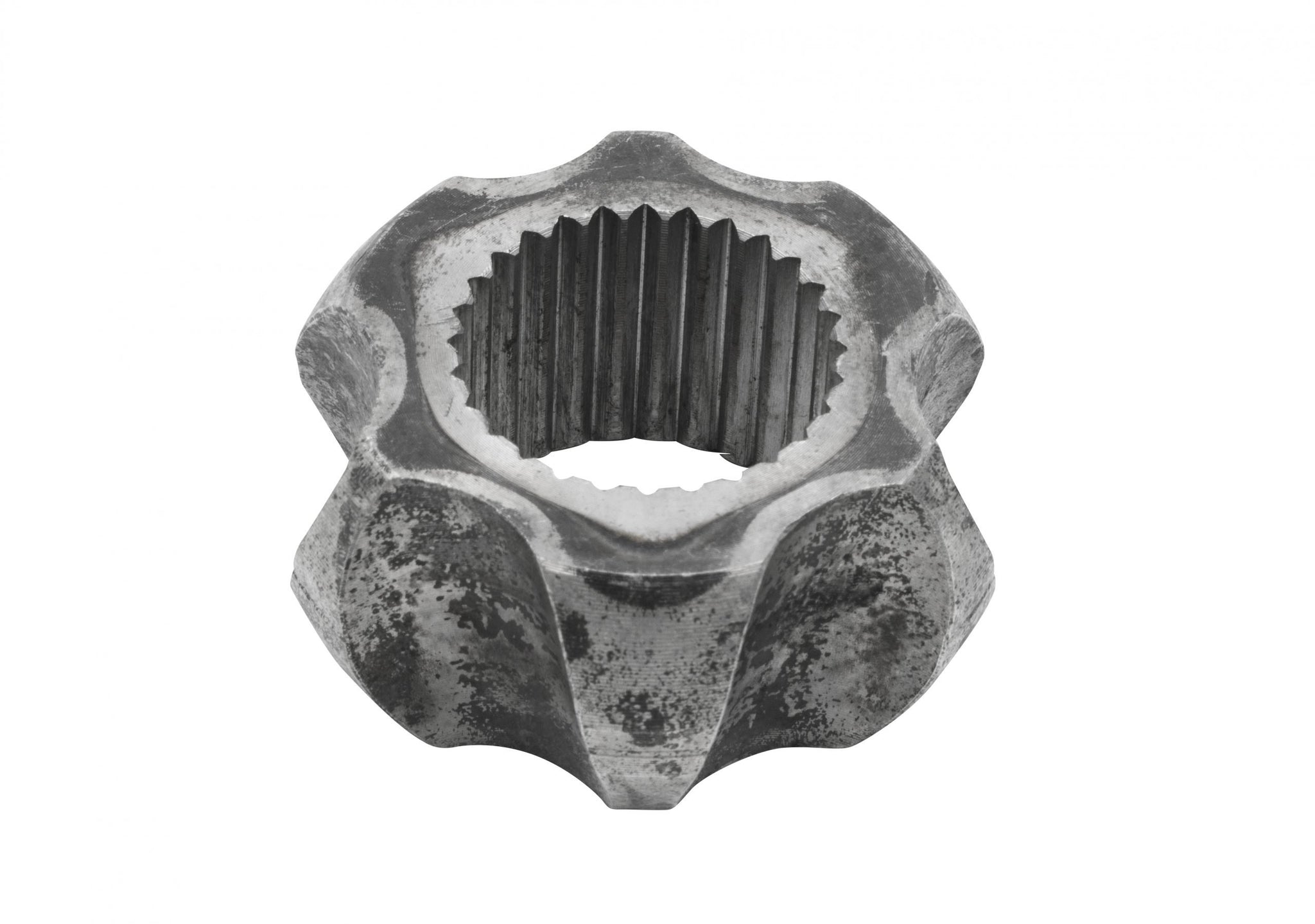

This inner race replaces the splined center in EMPI's standard 930 CV joint. It is for the 87-9469-B assembly, which uses a solid outer race, 28 center splines and .875-inch balls. The race is supplied separately rather than as a complete joint or race-and-ball kit.
Technical Details
- Part number: 16-2628-0
- Part type: Inner CV race only
- Replacement application: 87-9469-B
- Parent joint outside diameter: 108mm
- Inner splines: 28
- Ball size: .875 inch
- Sold: Each
Fitment & Compatibility
Verify the exact EMPI joint and the condition of its balls, cage and outer tracks. Race-prepped versions have separate part numbers, so do not choose from the general 930 name alone. Check assembly orientation and movement before installing the rebuilt joint.
