Product details

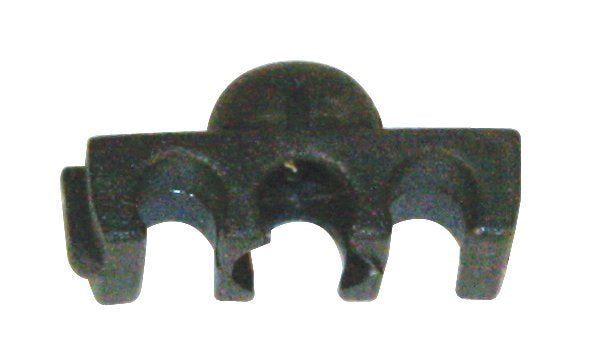

The EMPI 98-9022-B is a three-slot cable holder that clips spark plug wires to the fan shroud on air-cooled VW engines in the Type 1 Beetle, Karmann Ghia, Type 2 Bus, Type 3, and air-cooled Vanagon. It snaps into the shroud and holds the ignition leads in place, away from engine heat and from chafing on the tinware. Old holders crack or fall out over the years, and the leads then hang loose across the engine. EMPI cross-references this holder to VW number 113 905 451A.
Count the broken or missing holders on your shroud before you order, since each one is sold individually. New ignition wires are a good time to replace them, because fresh leads routed through a cracked holder start rubbing again. EMPI's Bosch ignition wire set (98-9986-B) covers the Type 1 from 1950–1979, the Karmann Ghia from 1956–1974, and the Type 2 from 1950–1971.
Technical Details
- Manufacturer: EMPI
- Manufacturer part number: 98-9022-B
- Part type: spark plug wire holder
- Capacity: 3 wires
- Mounting: snaps into the fan shroud
- VW reference number: 113 905 451A
- Sold as: each
Fitment & Compatibility
Fits the Type 1 Beetle 1950–1979 (Super Beetle included), Karmann Ghia 1954–1974, Type 2 Bus 1950–1979, Type 3 1964–1973, and air-cooled Vanagon 1979–1983. VW also used a two-lead holder at some shroud positions, so count the wires at each clip before ordering.
Common Questions
Does one holder take all four spark plug wires?
No. It has three slots, so order one for each holder position on your shroud.
Is this the same as VW part 113 905 451A?
EMPI cross-references it to that number. Some suppliers use 113 905 451A for a two-lead holder, so match by the three-slot design.
