Product details
This 1776cc component kit pairs the displacement with a stock camshaft and 69mm crankshaft. EMPI's HD S/S Bubble Top case and dual-port heads form the long-block package. The kit requires assembly and setup; it is not an already assembled or fully dressed engine.
Technical Details
- Part number: 98-0486-B
- Case: EMPI HD S/S Bubble Top
- Crank: 69mm, direct drilled, four dowels
- Rods: Forged stock type
- Heads: Dual port, 35.55mm intake/32mm exhaust valves
- Rockers: HD solid shaft, 1.1:1 with swivel-foot adjusters
- Oil pump: 26mm Schadek

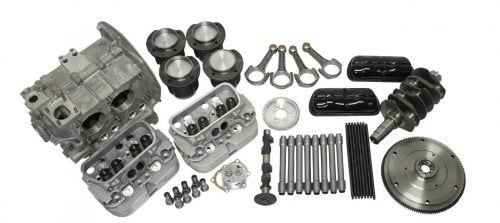

The package includes pistons/cylinders, stock cam, chromoly pushrods, 8mm chromoly head studs, Silverline main bearings, single-thrust cam and rod bearings, lifters, valve covers, pushrod tubes, chromoly gland nut, Elring gasket kit, main seal and hardware. Component selection may vary with availability.
Fitment & Compatibility
Confirm the intended air-cooled VW installation and all engine-building dimensions before assembly. Identify the required pulley, clutch, intake and exhaust combination. Aluminum cases require a steel-hub pulley or the bolt-in sand-seal pulley kit.
