Wilwood Narrow Dynapro-P Radial Rear Caliper and Bracket Kit for Porsche 911/912 Models (1969-83)

  • Sale
  • Regular price $922.60
Shipping calculated at checkout.


Narrow Dynapro-P Radial Rear Caliper and Bracket Kit

It's always been a struggle getting big brakes under our 911 or 912's. Struggle no more!  Wilwood's Narrow Dynapro-P Radial Rear Caliper and Bracket Kit is the easiest way to upgrade your 911 or 912 to 4 piston calipers. Use your stock 20mm rotor (912 guys, you'll have to grab those) Their BP-10 performance pads top off this kit. Everything else simply bolts on using the stock rotor and mounting locations.

These kits combine Wilwood's radial mount Dynapro-P four piston calipers with your vented rotors, and the positive response, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. The 4-piston aluminum calipers, and bracket outperform stock parts while weighing less. These kits bolt directly to your control arms without modification.

You'll keep your rotors and the kits does the rest.  Even the braided stainless soft lines are included! You simply can't beat it...

Kit Summary
Rear End Axle: OEM
Axle Offset: 0.00
Mount Type: Radial
Caliper Type: 4 - Piston
Rotor Diameter: Stock

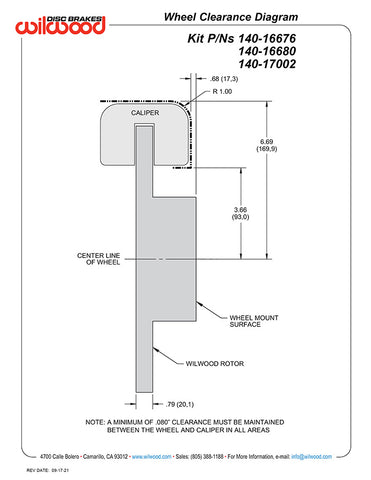

Min Wheel Diameter Req'd*: 15



Calipers
Left Hand - Part No: 120-16686
Right Hand - Part No: 120-16686
Type: Narrow Dynapro-P Radial Mount
Finish Color: Red/Yellow/Black Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.12
Piston 2 Bore (in): 1.12
Piston Area (In²): 1.98
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 4812
Brake Pad Area (In²): 5.1
Brake Pad Volume (In³): 1.71
Pad Compound: BP-10
