PMB's own 914-6/GT Front Mount Oil Cooler Bundle

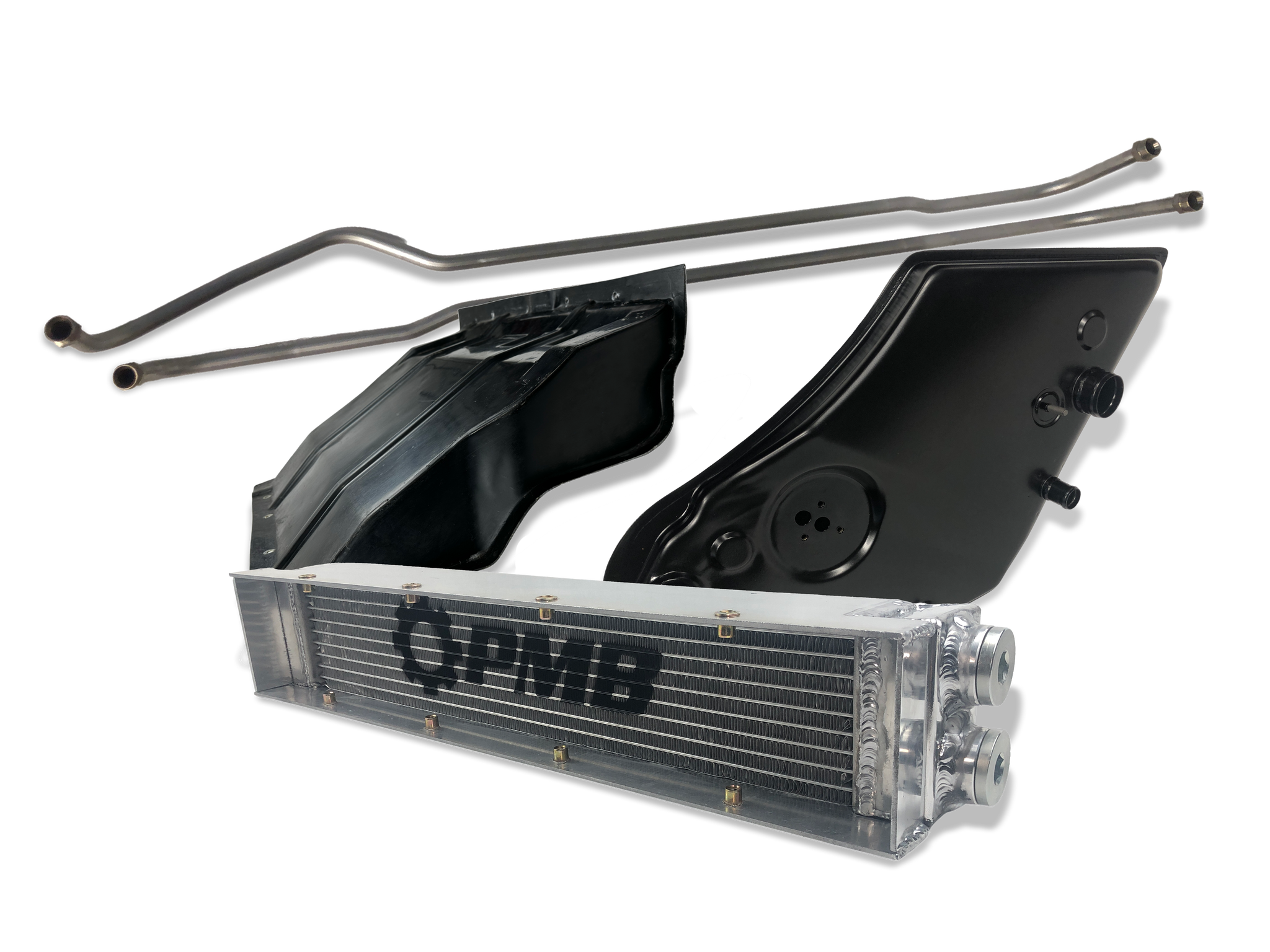

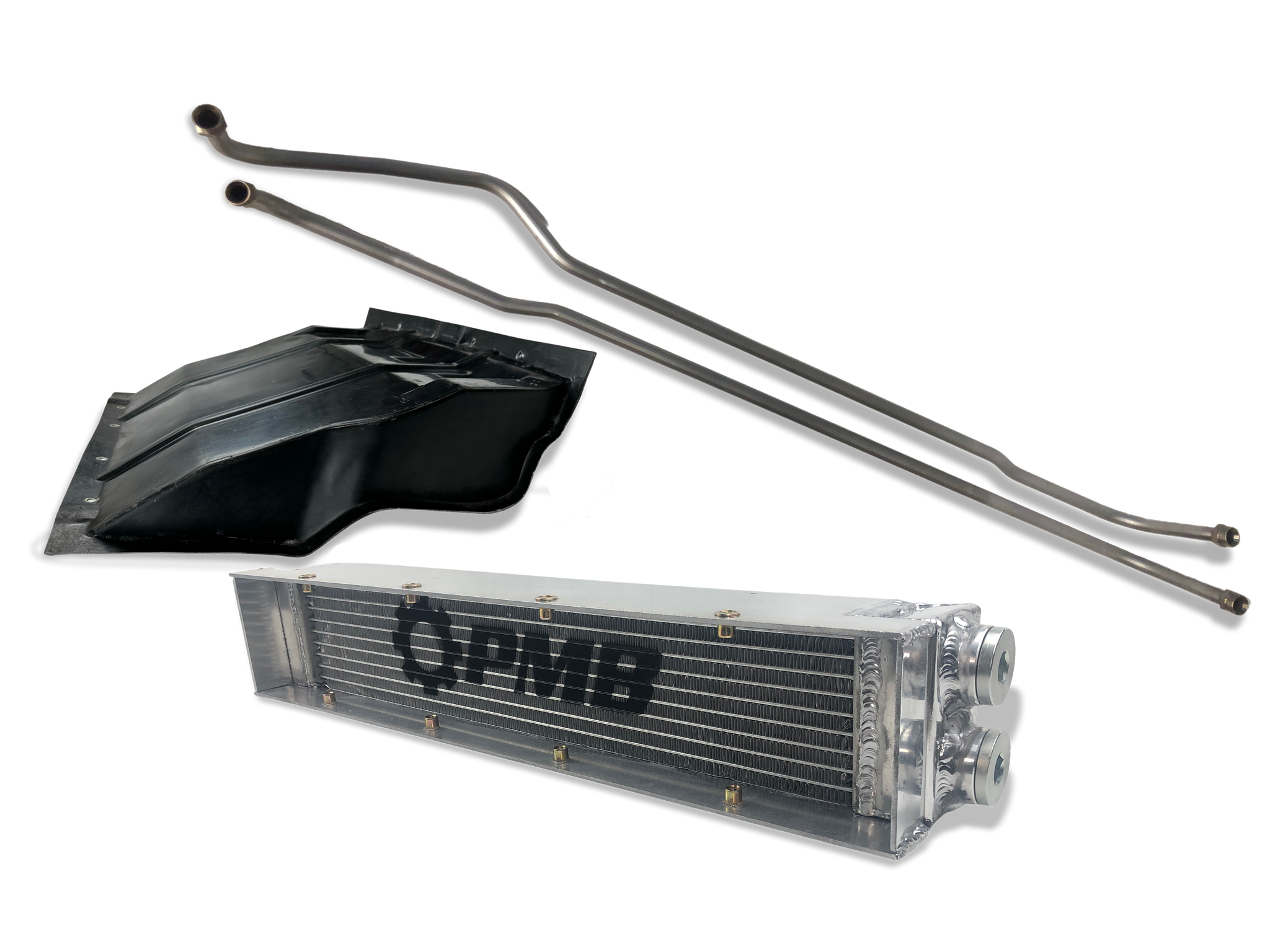

PMB Performance is proud to announce our oil cooling bundle. This is a one-stop shop for everything you need to get started on your 914-6 or 6/GT's oil cooling circuit. It includes PMB's exclusive cooler, our favorite shroud from Getty Design, and our proprietary GT Oil hard lines. This kit can also be configured to include a 914-6 Style fender mount dry sump oil tank, which is a must have for any 6 conversion.
The factory knew what they were doing gang. Your cooler belongs up front. With a front cooler in a factory style shroud, your big -6 will have the coolest oil temps on the block. Take the step to protect that $15-30,000.00 engine investment. Keep it cool!

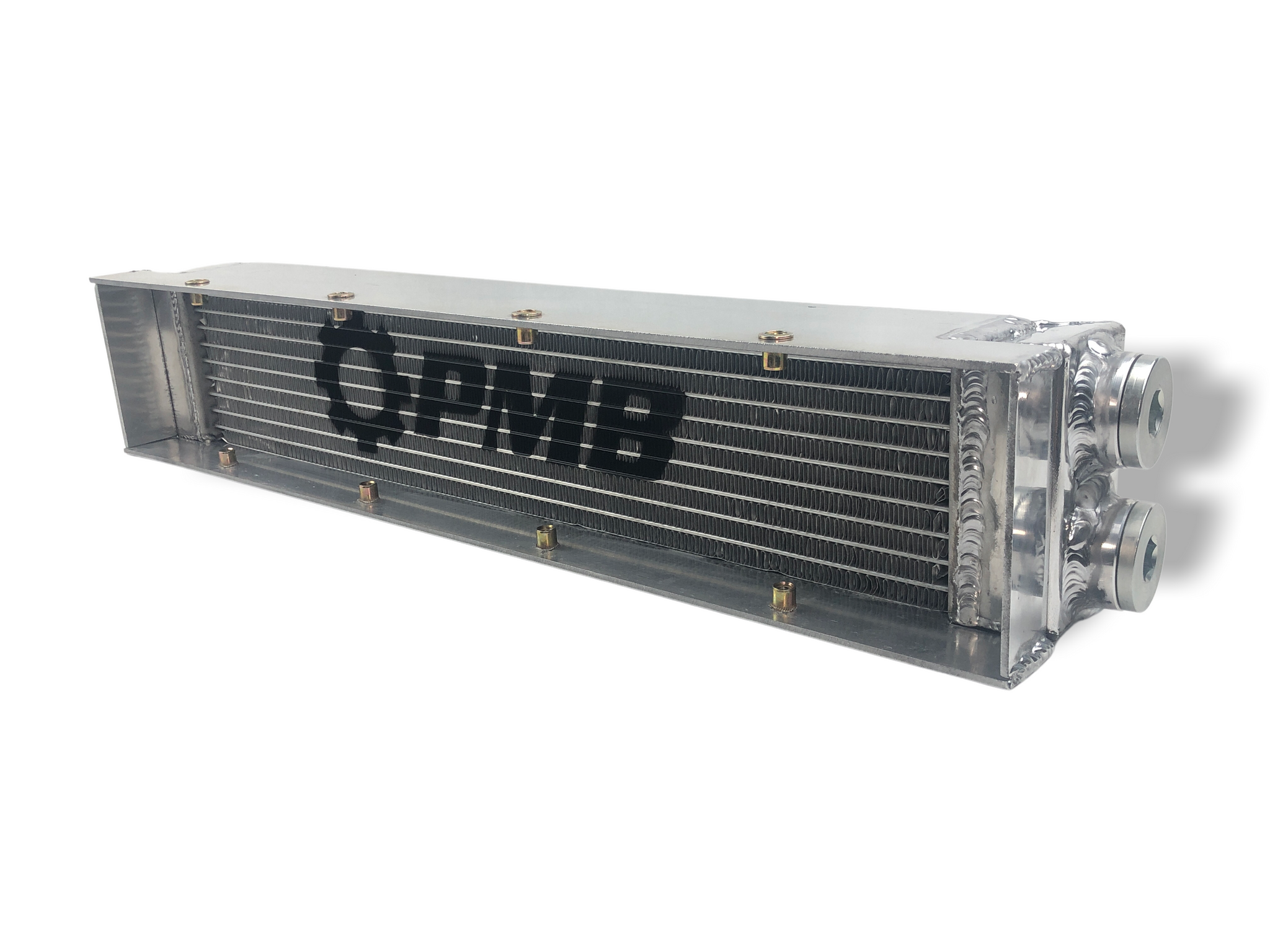

This cooler is a direct fit in the included Getty Design shroud. The mounting holes line up perfectly, the cutouts for the 30mm inlet and outlets line up perfectly. We've run these coolers on all of our 914-6 conversions from 2.5 to 3.6! Temps stay at 180-200 degrees. You "might" bump over 200 at the track.
*Oil line fittings are M30x1.5mm and the mounting holes are M6x1mm
Basic Overview
This kit includes the following parts.
- Oil Cooler

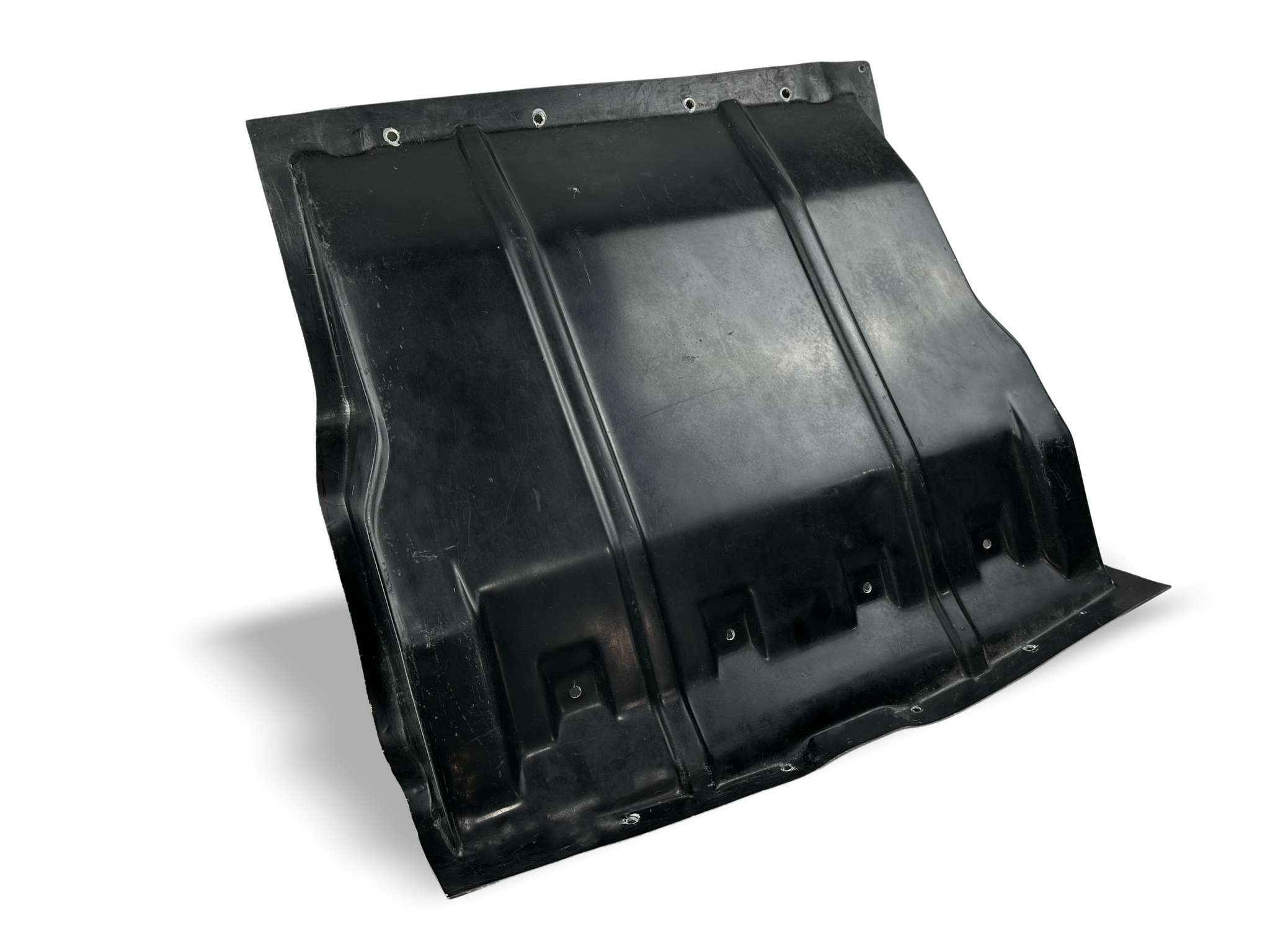

- Oil Cooler Shroud

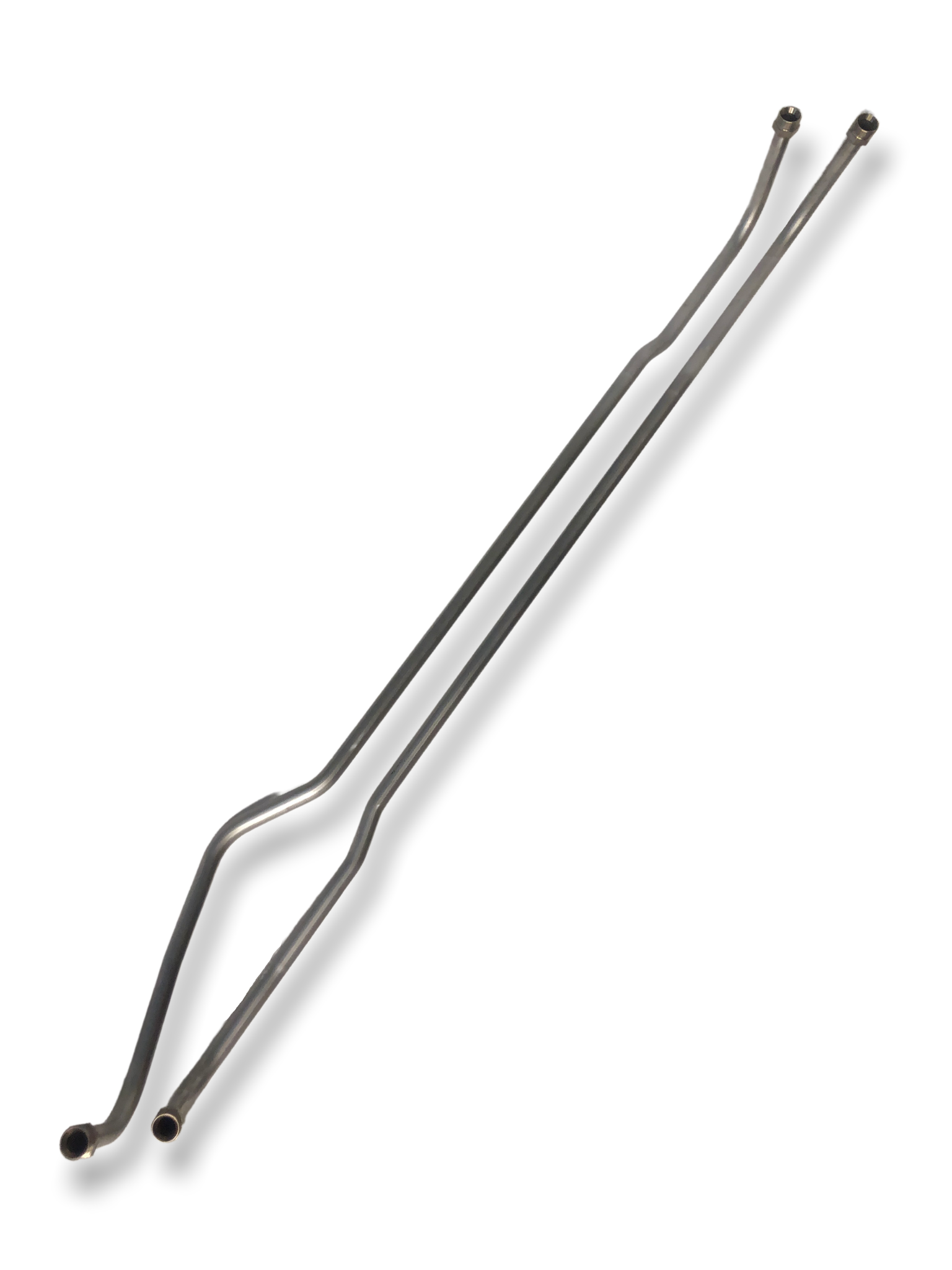

- GT Oil Lines

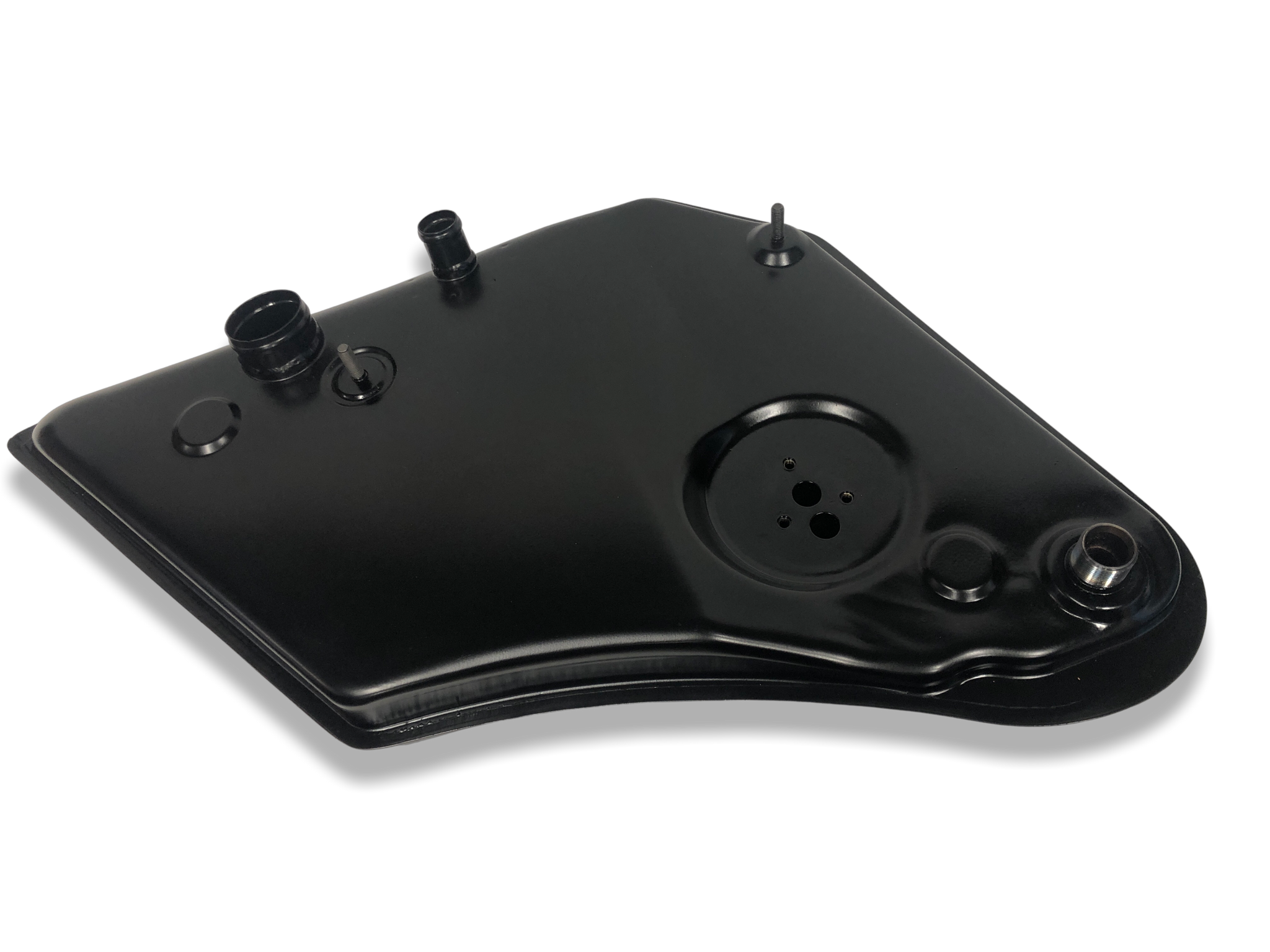

- Oil Tank (optional)
The full oil cooling circuit will require these parts to be custom made/modified/supplied based on how your choose to mount and route the hard parts.
- Factory Scavenge Line (custom fitting will be needed at the end.
- Soft Line - Scavenge to GT Hard Line (custom made)
- Soft Line - GT Line to Thermostat (custom made)
- Soft Line - Thermostat to Oil Cooler (custom made)
- Soft Line - Oil Cooler to Thermostat (custom made)
- Soft Line - Thermostat to GT Line (custom made)
- Soft Line - GT Line to Oil Tank (custom made)
- Soft Line - Oil Tank to Factory Oil Cooler (custom made)
- -12AN/30mm Thermostat (We suggest a 180° thermostat)
