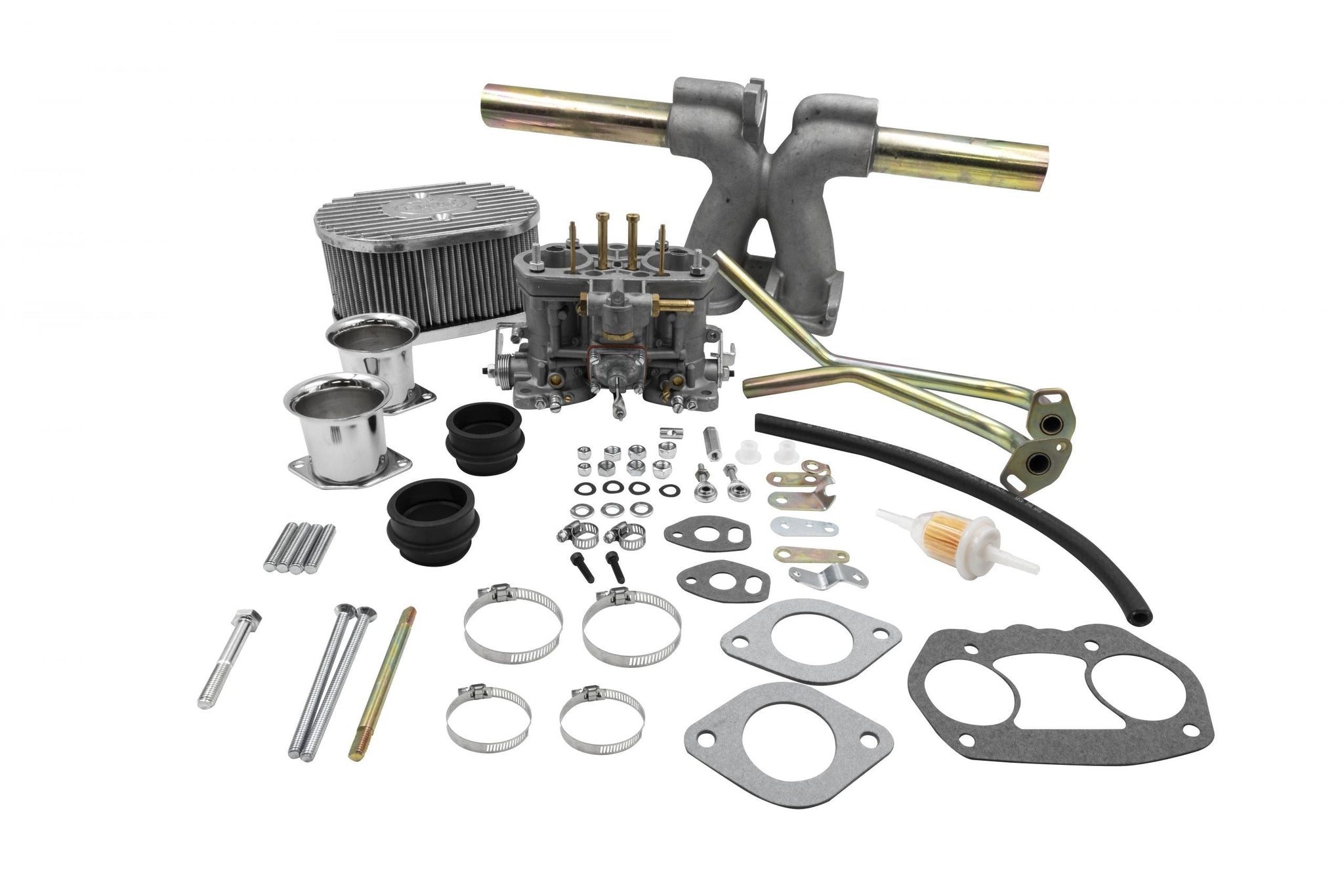

Kit contents of the EMPI 40mm HPMX single carburetor setup laid out
Product photo of the EMPI Deluxe single 40mm HPMX carburetor kit
EMPI Deluxe single 40mm HPMX carburetor kit with billet air cleaner for VW Type 1
Alternate view of the EMPI Deluxe 40mm HPMX single carb kit
Kit contents of the EMPI 40mm HPMX single carburetor setup laid out
Product photo of the EMPI Deluxe single 40mm HPMX carburetor kit

EMPI Deluxe Single 40mm HPMX Kit with Billet Air Cleaner for VW Type 1

SKU: 44-7315-0

$617.78 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

This 40mm HPMX package provides a center-mounted single-carburetor setup for a Type 1 upright engine. It includes an isolated aluminum manifold and the Deluxe billet air-cleaner assembly. Set up the carburetor's two-barrel operation and metering for the installed engine rather than choosing on throttle size alone.

Technical Details

  • Part number: 44-7315-0
  • Carburetor: Single 40mm HPMX
  • Intake: Isolated aluminum center section
  • Included: Velocity stacks, linkage, billet air-cleaner assembly with gauze element, fuel line, gaskets and hardware

Fitment & Compatibility

For Type 1 dual-port installations; EMPI describes the 40mm single-carb setup for basic 1600–1800cc builds. Confirm the end castings, intake connections, and available clearance. Check fuel delivery and final calibration after installation.
