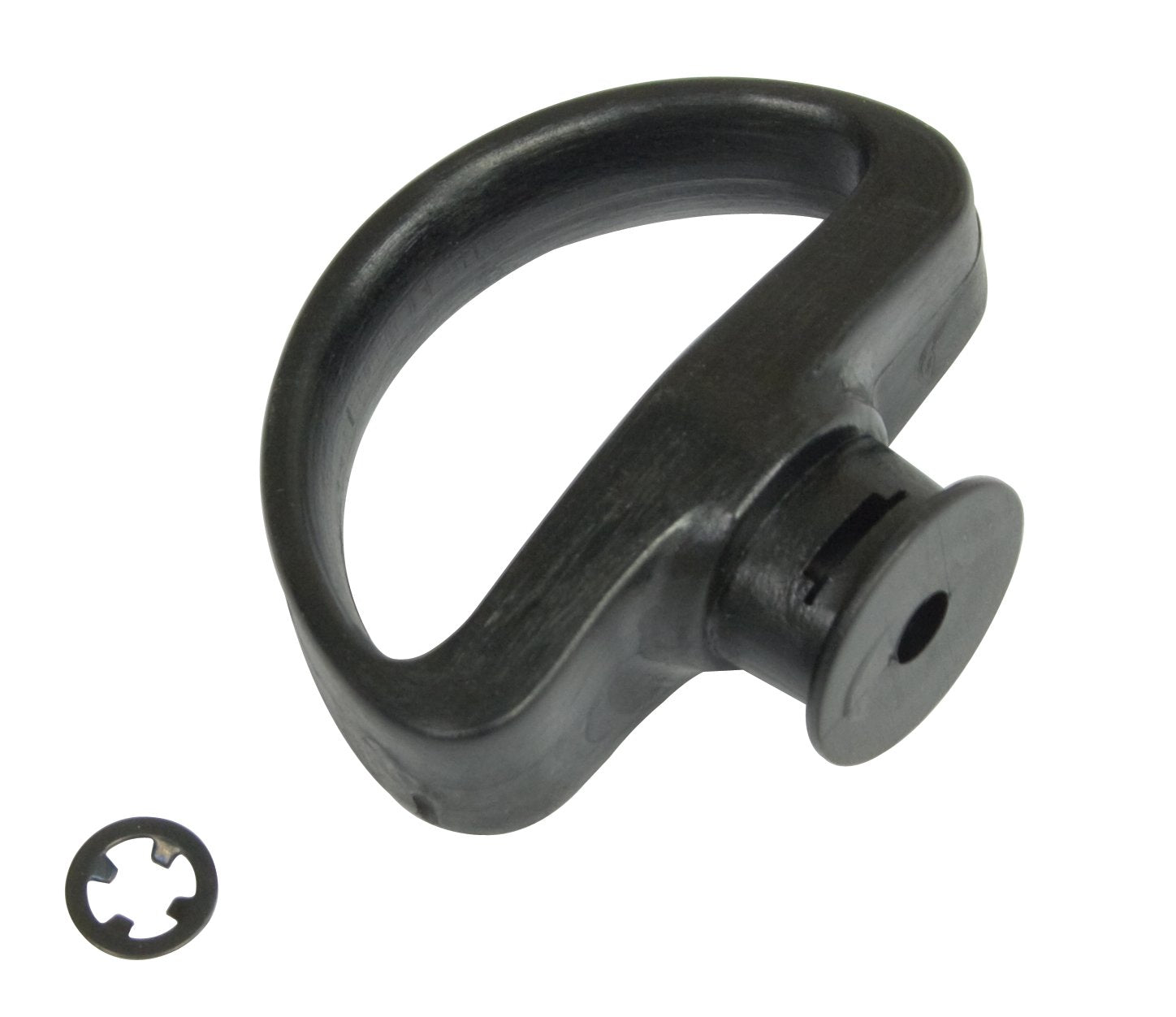

This Pit Style Engine Lid Release is what the Porsche factory used on quite a few (they were all different) 914-6/GT's. It provided a convenient way to open the engine lid in the pits without opening the door and reaching behind the drivers seat. We use this very handle on our PMB 914-6/GT build and our spec. Kundensport "Sports Purpose" builds.
This is a relatively easy mod if you're even "a little" handy with a welder. Here's the steps!:
- Remove the cable from the latch mechanism and pull it all the way out of the guide tube.
- Remove the left engine "side grill".
- Cut the "weld" off for the cable guide tube in the left side hell-hole area.
- Determine the amount of cable guide tube you'll need by bending it up and flush with where the grill would mount.
- Re-weld the cable guide tube to the side grill upright for support.
- Trim Top of guide tube flush with where the grill will mount.
- Re-install, mark and modify grill to allow the cable to go through.
- Install the threaded knob end of the cable into the pull knob (threads may need to be cut down).
- Install cable in guide tube and reattach to the latch mechanism.
- Make certain the latch pull works prior to bending a 90 degree stop angle in the cable and trimming it to fit.
