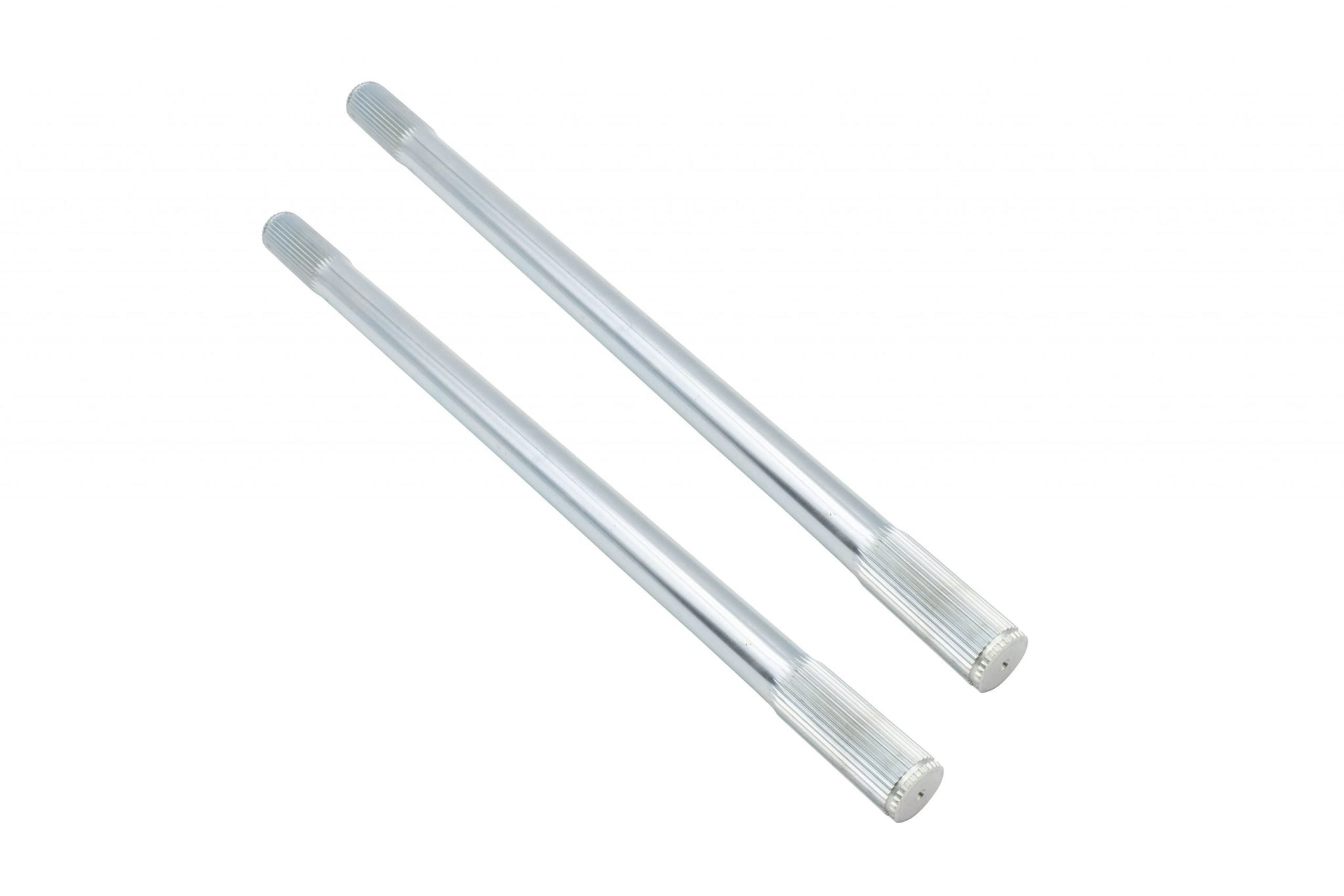

EMPI 19 1/4-Inch 33-Spline Axles for VW Type 2 Transaxle with Type 1 and Type 2 CV Joints, Pair

These 19 1/4 inch axles have 33 splines and mate to Type 1 or Type 2 style CV joints with 3 x 3 arms on a Type 2 transaxle. Sold as a pair.

Technical Details

• Manufacturer: EMPI
• Manufacturer part number: 16-2206-0
• Axle length: 19 1/4 inches
• Spline count: 33
• CV joint style: Type 1 and Type 2
• Arms: 3 x 3
• Sold as: Pair

Fitment & Compatibility

Match the 33-spline count to your transaxle. Builds using 930 CV joints need the 28-spline axles instead.
